TYPES OF STEM BUMPER

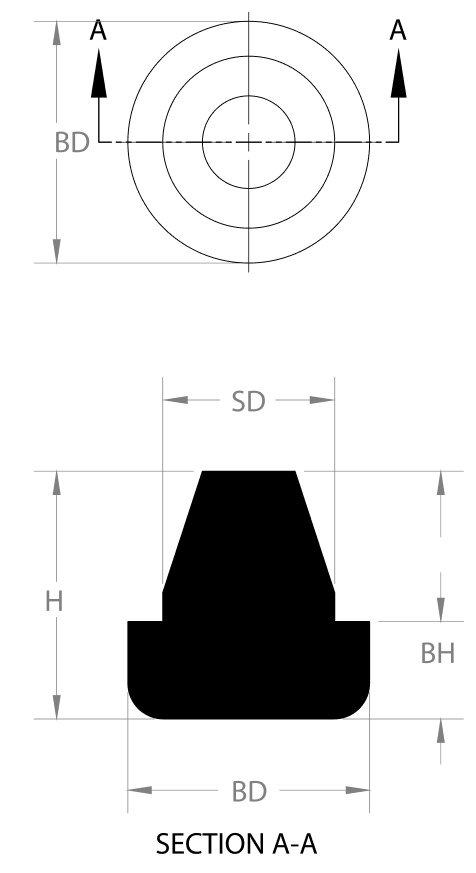

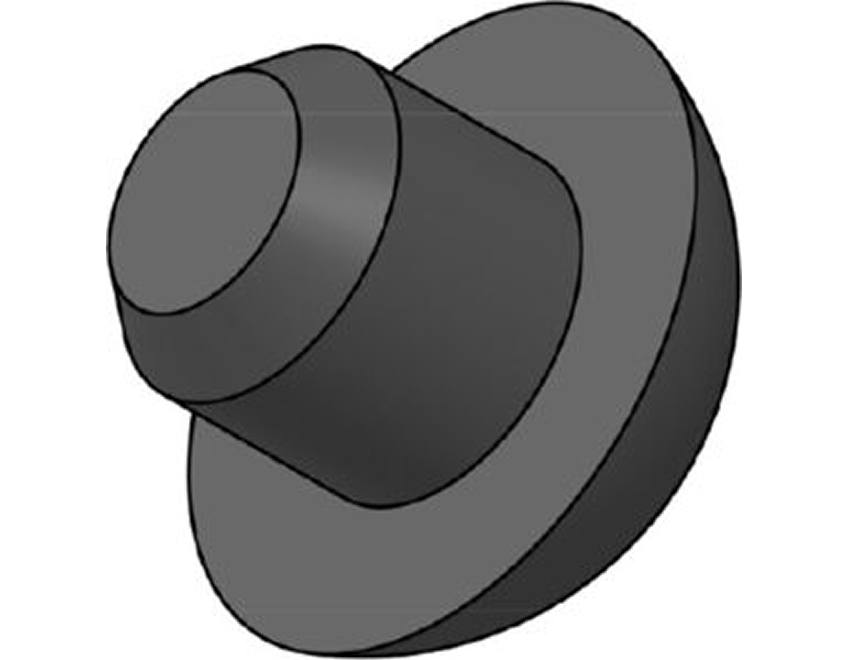

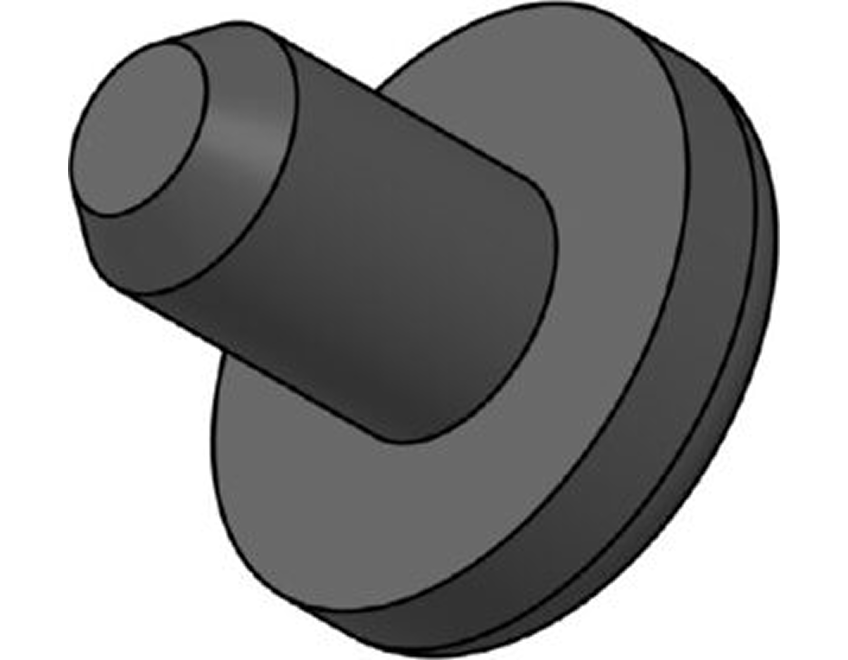

type 1

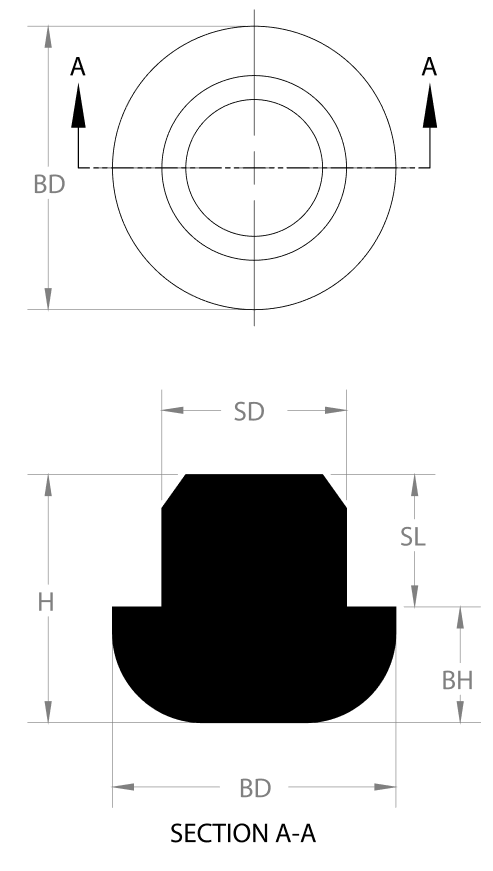

type 2

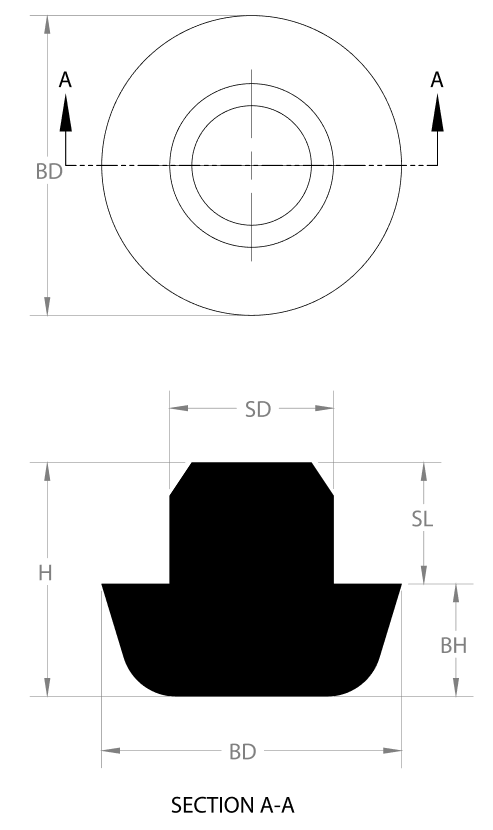

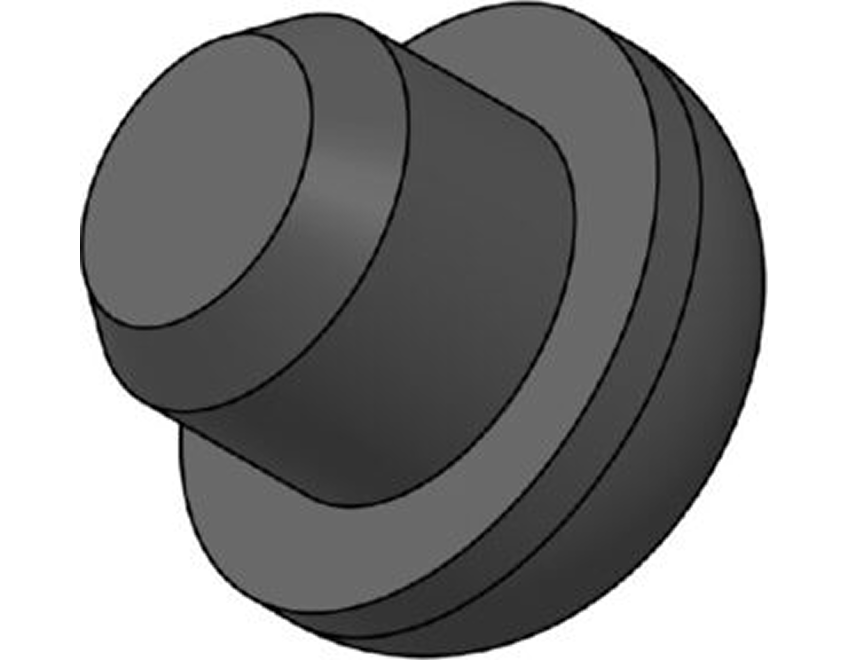

type 3

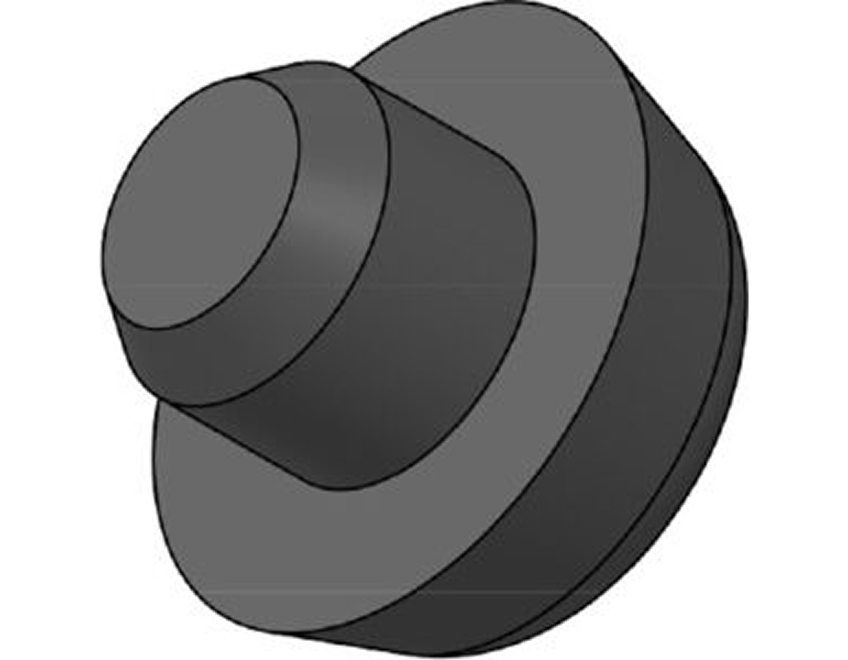

type 4

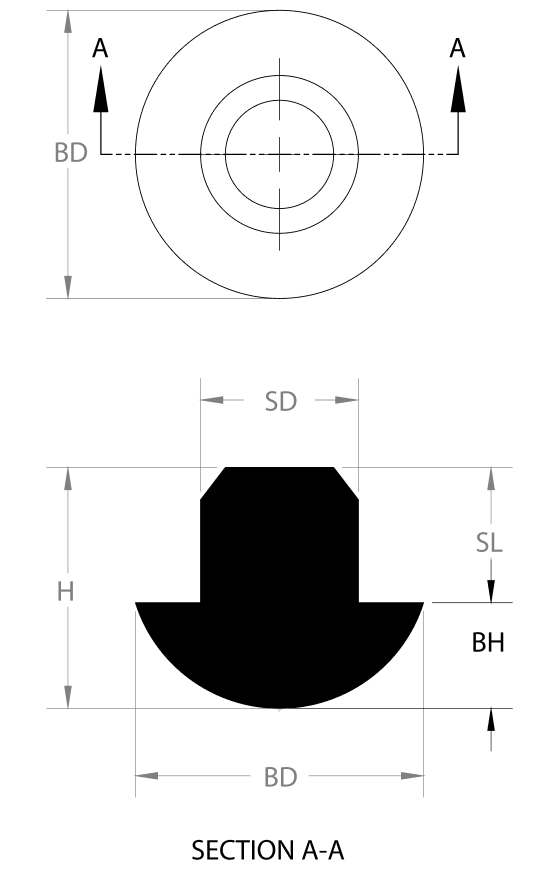

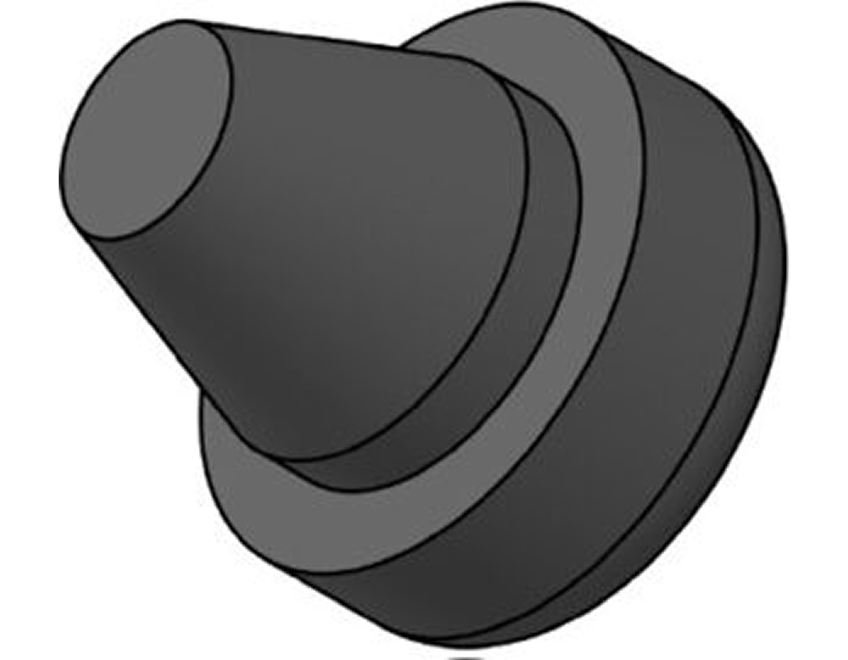

type 5

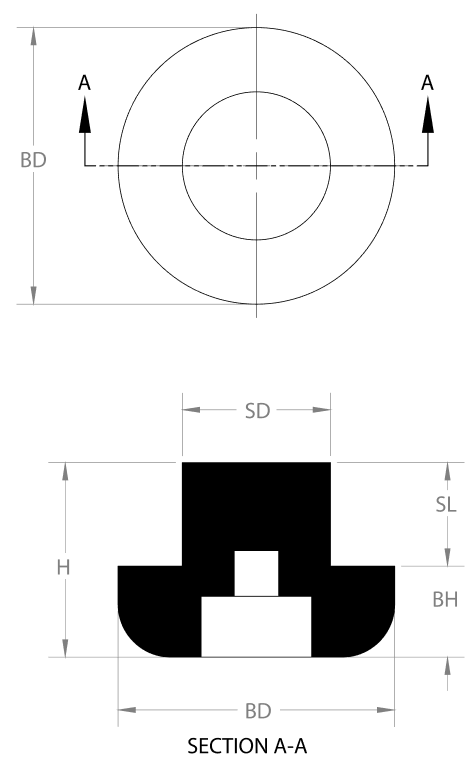

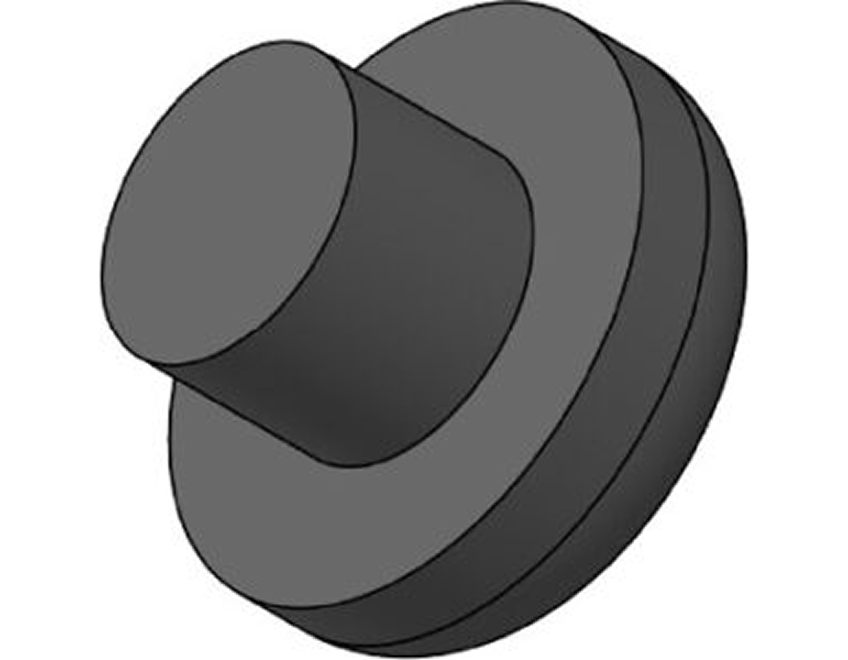

type 6
DIMENSIONS
| PRODUCT CODE
STEM BUMPER |
FIG NO. | BASE DIAMETER (BD) |
TOTAL HEIGHT (H) |
STEM DIAMETER (SD) |
STEM LENGTH (SL) |
BASE HEIGHT (BH) |
| SB 1 | 1 | 9.5 | 7 | 4.8 | 6.4 | 0.6 |
| SB 2 | S | 4.7 | 6.3 | 3.3 | 5.6 | 0.8 |
| SB 3 | 1 | 12.7 | 6.4 | 4.8 | 5.6 | 0.8 |
| SB 4 | 1 | 4.8 | 3.4 | 3.2 | 2.4 | 1 |
| SB 5 | 3 | 5.6 | 6.4 | 4.3 | 5.2 | 1.2 |
| SB 6 | 1 | 12.7 | 7.9 | 4.8 | 6.4 | 1.6 |
| SB 7 | 1 | 9.5 | 7.9 | 4.8 | 6.4 | 1.6 |
| SB 8 | 1 | 6.4 | 4.8 | 4.4 | 3.2 | 1.6 |
| SB 9 | 2 | 12.7 | 9.5 | 5 | 7.9 | 1.6 |
| SB 10 | 1 | 9.5 | 6 | 6 | 4.4 | 1.6 |
| SB 11 | 1 | 12.7 | 7.9 | 9.5 | 6.4 | 1.6 |
| SB 12 | 5 | 12.7 | 7.9 | 6 | 6.4 | 1.6 |
| SB 13 | 1 | 11.9 | 11.1 | 9.5 | 9.5 | 1.6 |
| SB 14 | 2 | 12.7 | 9.5 | 5 | 7.9 | 1.6 |
| SB 15 | 1 | 6 | 7.1 | 3.6 | 5.6 | 1.6 |
| SB 16 | 1 | 12.7 | 5 | 4.6 | 3.3 | 1.7 |
| SB 17 | 1 | 11.9 | 15.2 | 9.5 | 13.5 | 1.8 |
| SB 18 | 1 | 9.5 | 6.8 | 6 | 4.8 | 2 |
| SB 19 | 3 | 12.7 | 9.9 | 5 | 6.4 | 2 |
| SB 20 | 1 | 12.7 | 8.3 | 4.8 | 6.4 | 2 |
| SB 21 | 5 | 12.7 | 8.3 | 6.4 | 6.4 | 2 |
| SB 22 | 1 | 12.7 | 9.9 | 6.4 | 7.9 | 2 |
| SB 23 | 1 | 9.5 | 6.8 | 5 | 4.8 | 2 |
| SB 24 | 2 | 7.9 | 14.7 | 6.4 | 12.7 | 2 |
| SB 25 | 5 | 6.7 | 10.3 | 3.8 | 7.9 | 2.4 |
| SB 26 | 1 | 9.5 | 7.1 | 5.1 | 4.8 | 2.4 |
| SB 27 | 1 | 12.7 | 7.1 | 6.4 | 4.8 | 2.4 |
| SB 28 | 5 | 6.7 | 10.3 | 3.6 | 7.9 | 2.4 |
| SB 29 | 1 | 12.7 | 8.7 | 4.8 | 6.4 | 2.4 |
| SB 30 | 1 | 11.1 | 8.7 | 6.4 | 6.4 | 2.4 |
| SB 31 | 2 | 8.9 | 11.9 | 4.8 | 9.4 | 2.5 |
| SB 32 | 1 | 15.9 | 10.7 | 12.3 | 7.9 | 2.8 |
| SB 33 | 1 | 5 | 4.4 | 3.3 | 1.6 | 2.8 |
| SB 34 | 1 | 15.9 | 8.7 | 6.8 | 6 | 2.8 |
| SB 35 | 1 | 9.7 | 6.1 | 3.2 | 3 | 3 |
| SB 36 | 2 | 6.4 | 5.6 | 3.2 | 2.4 | 3.2 |
| SB 37 | 3 | 9.5 | 7.9 | 5 | 4.8 | 3.2 |
| SB 38 | 1 | 12.7 | 11.1 | 7.9 | 7.9 | 3.2 |
| SB 39 | 2 | 6.4 | 7.9 | 3.2 | 4.8 | 3.2 |
| SB 40 | 3 | 9.5 | 6.4 | 5 | 3.2 | 3.2 |
| SB 41 | 1 | 9.5 | 7.5 | 5 | 4.4 | 3.2 |
| SB 42 | 2 | 9.5 | 9.5 | 5 | 6.4 | 3.2 |
| SB 43 | 2 | 11.1 | 6.4 | 7.9 | 3.2 | 3.2 |
| SB 44 | 1 | 11.1 | 9.5 | 6.4 | 6.4 | 3.2 |
| SB 45 | 1 | 12.7 | 12.7 | 6.4 | 8.7 | 3.2 |
| SB 46 | 5 | 12.7 | 9.7 | 6 | 6.4 | 3.2 |
| SB 47 | 1 | 12.7 | 11.1 | 7.5 | 7.9 | 3.2 |
| SB 48 | 1 | 11.1 | 8.7 | 7.1 | 5.6 | 3.2 |
| SB 49 | 1 | 10.7 | 7.9 | 6.6 | 4.8 | 3.2 |
| SB 50 | 5 | 15.9 | 12.7 | 12.9 | 9.5 | 3.2 |
| SB 51 | 1 | 14.3 | 10.7 | 11.1 | 7.5 | 3.2 |
| SB 52 | 1 | 12.7 | 9.5 | 6.4 | 6.4 | 3.2 |
| SB 53 | 5 | 12.7 | 11.9 | 7.3 | 8.7 | 3.2 |
| SB 54 | 1 | 12.7 | 7.9 | 6.8 | 4.8 | 3.2 |
| SB 55 | 1 | 11.9 | 11.5 | 7.9 | 7.9 | 3.6 |
| SB 56 | 2 | 9.5 | 10.3 | 7.1 | 6.4 | 4 |
| SB 57 | 3 | 14.3 | 7.1 | 11.1 | 3.2 | 4 |
| SB 58 | 1 | 9.5 | 8.7 | 4.8 | 4.8 | 4 |
| SB 59 | 1 | 9.5 | 12.7 | 7.7 | 8.7 | 4 |
| SB 60 | 2 | 9.5 | 11.1 | 6.4 | 7.1 | 4 |
| SB 61 | 5 | 12.7 | 12.7 | 7.3 | 8.7 | 4 |
| SB 62 | 1 | 11.1 | 8.7 | 6.4 | 4.8 | 4 |
| SB 63 | 2 | 8 | 8.7 | 4.9 | 4.8 | 4 |
| SB 64 | 2 | 10.7 | 10.7 | 6.4 | 6.4 | 4.4 |
| SB 65 | 6 | 9.5 | 9.5 | 4.8 | 4.8 | 4.8 |
| SB 66 | 3 | 12.7 | 7.9 | 6.4 | 3.2 | 4.8 |
| SB 67 | 2 | 11.1 | 7.9 | 4.8 | 3.2 | 4.8 |
| SB 68 | 3 | 11.1 | 12.7 | 7.9 | 7.9 | 4.8 |
| SB 69 | 2 | 12.7 | 7.9 | 5.2 | 3.2 | 4.8 |
| SB 70 | 2 | 11.1 | 7.9 | 5.6 | 3.2 | 4.8 |
| SB 71 | 2 | 11.1 | 11.1 | 6.4 | 6.4 | 4.8 |
| SB 72 | 2 | 11.1 | 7.9 | 6 | 3.2 | 4.8 |
| SB 73 | 2 | 11.1 | 11.1 | 6.4 | 6.4 | 4.8 |
| SB 74 | 1 | 12.7 | 11.1 | 9.5 | 6.4 | 4.8 |
| SB 75 | 1 | 12.7 | 9.5 | 9.5 | 4.8 | 4.8 |
| SB 76 | 1 | 11.1 | 7.9 | 7.9 | 3.2 | 4.8 |
| SB 77 | 1 | 12.7 | 14.3 | 9.4 | 9.5 | 4.8 |
| SB 78 | 1 | 22.2 | 14.3 | 12.7 | 9.5 | 4.8 |
| SB 79 | 1 | 15.9 | 15.1 | 11.3 | 9.5 | 5.6 |
| SB 80 | 1 | 15.9 | 15.1 | 11.3 | 9.5 | 5.6 |
| SB 81 | 1 | 15.9 | 18.3 | 11.3 | 12.7 | 5.6 |
| SB 82 | 6 | 12.7 | 10.2 | 6.4 | 4.8 | 5.4 |
| SB 83 | 6 | 12.7 | 10.4 | 7.1 | 4.8 | 5.4 |
| SB 84 | 3 | 17.5 | 15.9 | 13.5 | 9.5 | 6.4 |
| SB 85 | 4 | 11.9 | 17.5 | 9.5 | 11.1 | 6.4 |
| SB 86 | 2 | 12.7 | 17.5 | 11.1 | 11.1 | 6.4 |
| SB 87 | 2 | 12.7 | 17.5 | 10.3 | 11.1 | 6.4 |
| SB 88 | 3 | 9.5 | 11.1 | 5 | 4.8 | 6.4 |
| SB 89 | 4 | 9.5 | 14.3 | 5 | 7.9 | 6.4 |
| SB 90 | 1 | 15.9 | 15.9 | 9.5 | 9.5 | 6.4 |
| SB 91 | 3 | 17.5 | 15.9 | 14.3 | 9.5 | 6.4 |
| SB 92 | 3 | 17.5 | 15.9 | 15.4 | 9.5 | 6.4 |
| SB 93 | 2 | 7.9 | 19.1 | 6.4 | 12.7 | 6.4 |
| SB 94 | 4 | 9.5 | 14.3 | 4.8 | 7.1 | 7.1 |
| SB 95 | 3 | 15.9 | 18.3 | 11.1 | 11.1 | 7.1 |
| SB 96 | 3 | 15.9 | 18.3 | 11.1 | 7.1 | |
| SB 97 | 3 | 15.9 | 18.3 | 11.1 | 7.1 | |
| SB 98 | 2 | 15.9 | 15.9 | 7.9 | 7.9 | |
| SB 99 | 2 | 15.9 | 14.3 | 7.9 | 6.4 | 7.9 |
| SB 100 | 3 | 15.9 | 23 | 14.1 | 15.1 | 7.9 |
| SB 101 | 4 | 12.7 | 16.3 | 4.8 | 7.9 | 8.3 |
| SB 102 | 4 | 15.5 | 17.5 | 9.7 | 8.7 | 8.7 |
| SB 103 | 1 | 55.6 | 27 | 44.5 | 18.3 | 8.7 |
| SB 104 | 2 | 20.6 | 22.2 | 17.5 | 12.7 | 9.5 |
| SB 105 | 3 | 17.5 | 19.1 | 13.5 | 9.5 | 9.5 |
| SB 106 | 2 | 20.6 | 25.4 | 14.3 | 15.9 | 9.5 |
| SB 107 | 2 | 20.6 | 22.2 | 16.7 | 12.7 | 9.5 |
| SB 108 | 2 | 19.1 | 19.1 | 9.5 | 9.5 | 9.5 |
| SB 109 | 2 | 24.6 | 27 | 8.6 | 15.9 | 11.1 |
| SB 110 | 1 | 15.9 | 23.8 | 11.1 | 12.7 | 11.1 |
| SB 111 | 1 | 11.1 | 23.8 | 7.9 | 12.7 | 11.1 |
| SB 112 | 1 | 11.1 | 24.6 | 6.4 | 12.7 | 11.9 |
| SB 113 | 4 | 15.9 | 23.8 | 7.9 | 11.1 | 12.7 |
