ballistic rubber blocks

Ismat under our Brand BULWARK manufactures ballistic rubber blocks and tiles for shooting ranges used by the armed forces, law enforcement and private shooting ranges. We specialize in providing solutions to the shooting ranges and are the only company providing options in vulcanized virgin rubber as well as in recycled rubber, based on the requirements of our customers.

Our product range covers all areas of the shooting range both indoor and outdoor ranges – covering the floor, walls and ceilings, this helps in capturing the bullets which prevents ricochets and lead splash thereby drastically reducing lead dust. Our rubber also imparts very good acoustic properties.

Our range of vulcanized rubber blocks are approved by UAE armed forces and have passed the bullet penetration test of range from 5.56 mm – 9 mm and the fire test.

Ballistic Recycled Rubber Tiles

description

Made from very tough tire crumbs which are mixed with high quality MDI polyurethane binder. Used in shooting range both indoor and outdoor ranges – covering the floor, walls and ceilings, this helps in capturing the bullets which prevents ricochets and lead splash thereby drastically reducing lead dust. Our rubber also imparts very good acoustic properties.

The Interlocks

key benefits

These are by far the simplest and most easy to use tiles. They can be easily installed, removed and reinstalled at any other location even by an unskilled artisan. There is a choice to order single or dual colour tiles in all sizes.
SIZE (CM)
50X50



THICKNESS (CM)
1.0
1.5
2.0
2.5
3.0
SIZE (CM)
100X100



THICKNESS (CM)
1.0
1.5
2.0
CALE1497

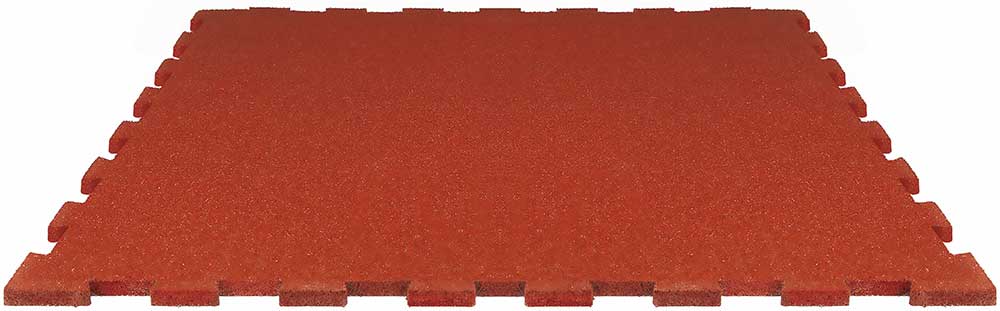

CALE1510

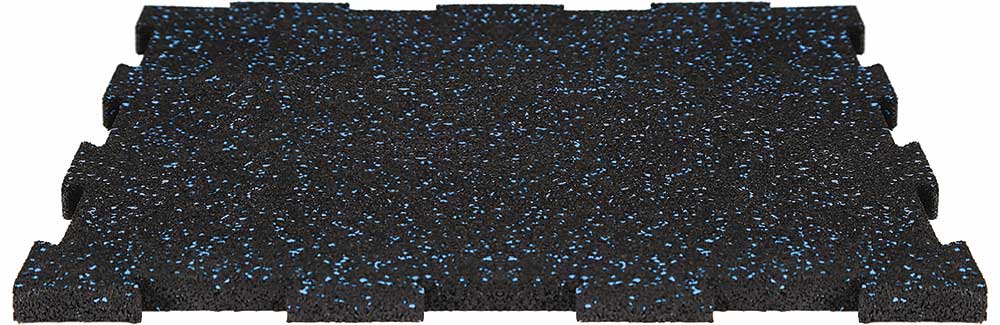

CALE1514

The Squares

key benefits

These are simple square tiles which can be laid in any pattern you desire. They can be glued to a concrete floor for better adhesion. Tiles above 35mm have plastic pins to keep the tiles in place. There is a choice to order single or dual colour tiles in all sizes.
zoomedversion
SIZE (CM)
50X50
THICKNESS (CM)
1.0 without pins
1.5 without pins
2.0 without pins
2.5 without pins
3.0 with pins
4.0 with pins
5.0 with pins
SIZE (CM)
100X100
THICKNESS (CM)
1.5
2.0
2.5
3.0

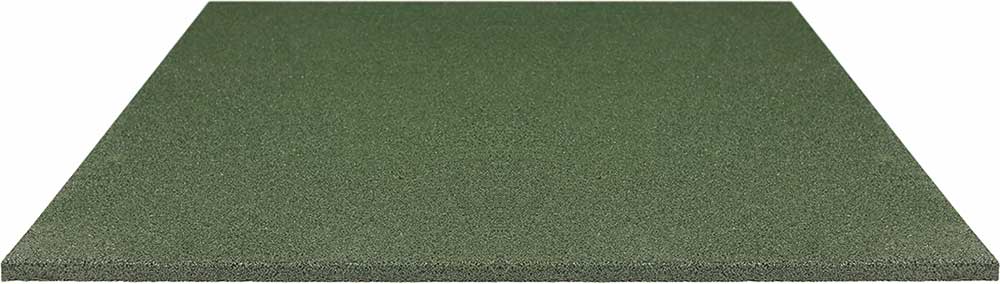

CALE1518
CALE1510

MATERIAL DATA SHEET

Product Name: Recycled Rubber Block      Polymer Base: Tire Crumbs

Sr.No. Property Test Method Unit Spec.(Limit)
1 Hardness ASTM D 2240-97 Shore A 70-75
2 Tensile Strength ASTM D412-98a MPa 0.57
3 Elongation @ Break ASTM D412-98a % Min 60
4 Dunlop Resilience, % testing at room temperature ISO 4662 : 1986 % 53
5 Abrasion Loss Volume Loss, ISO 4649 : 2002  %
6 Specific Gravity ASTM D792 g/cm3 1.06
7 Slip Test, BPN units Test Piece: BS 7188 : 1989 (Section 4) BPN units Test
Wet 27
Dry 57
8 Ignition Test**: Use Surface Time for extinction of flame, seconds BS 7188 (1989) (Section 6) seconds 37

Ballistic Vulcanized Virgin Rubber Blocks

description

Manufactured with a special formula mix – our vulcanized rubber blocks have very high resilience and durability and have excellent fire resistance property. As the blocks are very dense they impart excellent bullet penetration properties.

target curtains

Anti ricochets safety target curtains prevents re-bouncing of projectile splinters / back splinters. They are made from high quality natural rubber and have excellent resilience and durability, resistance against cutting and tearing and have excellent self-sealing properties.

They are positioned between the target and the backstop and are designed to keep bullets and back splatter in the downrange. Another distinct feature is the ability of the rubber sheeting to deaden noise from shots and strikes against the rear armour plating. The curtains can withstand high volume shooting and when the curtains wear out due to concentrated shooting, they can be rotated to extend their life. This unique material is demanded by many military, police, government and private indoor ranges across the globe.

key benefits

  • Having options in vulcanized virgin rubber as well as in recycled rubber
  • Very dense hence imparts excellent bullet penetration properties
  • Reliable protection from ricochets
  • Elastic material means no visible bullet holes
  • Can withstand high volume shooting
  • Suitable for use in indoor and outdoor shooting ranges
  • Sound acoustic properties
  • Slip-resistant
  • Weather resistant

block type

block
product_34

ERIB TRIANGLE TYPE 1

ERIB-TRANGLE-1-3d-view

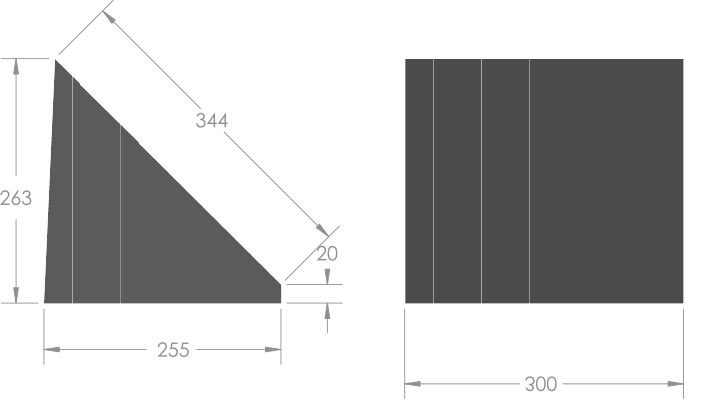

product_35

ERIB TRIANGLE TYPE 2

ERIB-TRANGLE-2-3d-view

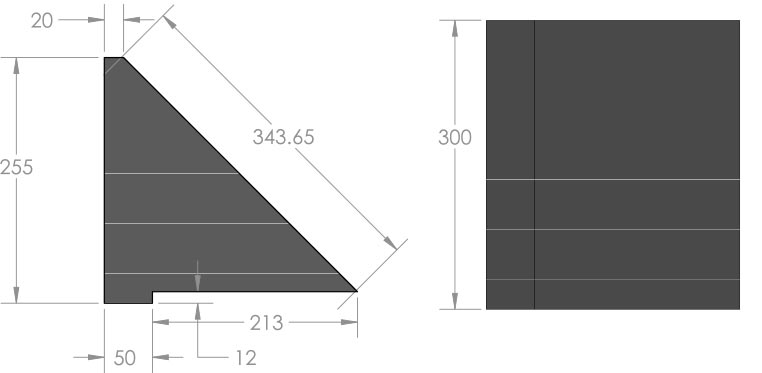

product_36

ERIB Z SHAPE TYPE 1

ERIB-Z-SHAPE-1-3d-view

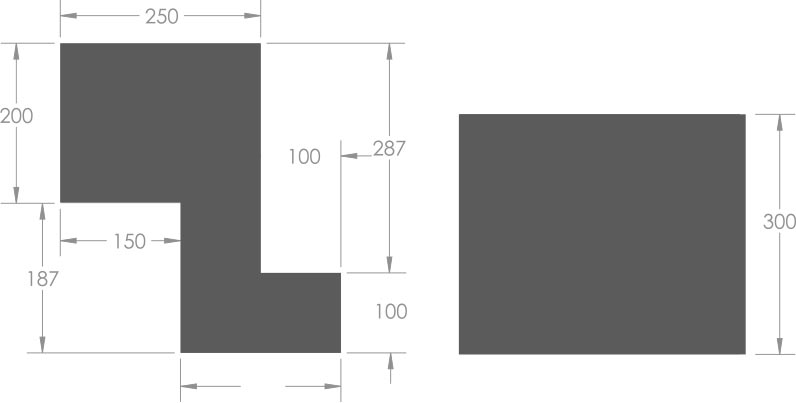

product_37

ERIB Z SHAPE TYPE 2

ERIB-Z-SHAPE-2-3d-view

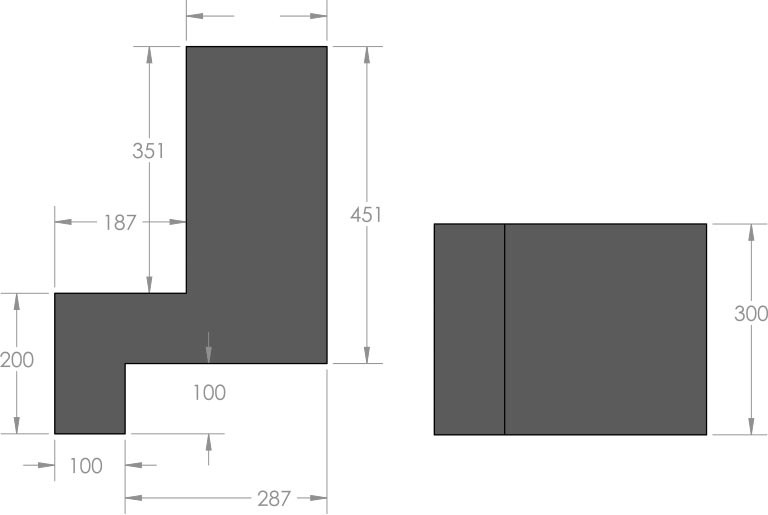

product_38
