Laminated Dock Bumper

description

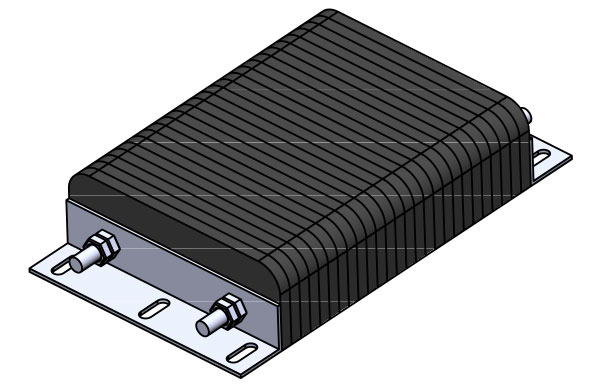

Bulwark Dock Bumpers are weather resistant, easily installed and long lasting to protect dock equipment, building walls and truck cargo from potential damage.

Bumper projection should be specified at not less than 4”. For recessed docks or special applications, additional projection may be required.

Assembly, Installation.

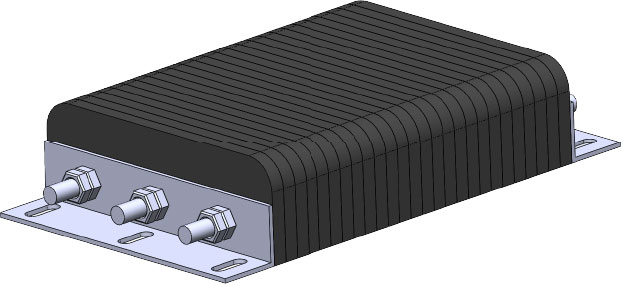

All laminated dock bumpers are assembled with two 3” x 3” x 1/4” thick steel angles. The angles are fastened with threaded rod and nut. All exposed metal parts are factory painted. We recommend all bumpers to be installed 1” to 2” below dock level. Use 3/4” or 5/8” expansion bolts with a minimum length of 3”.

DIMENSIONS

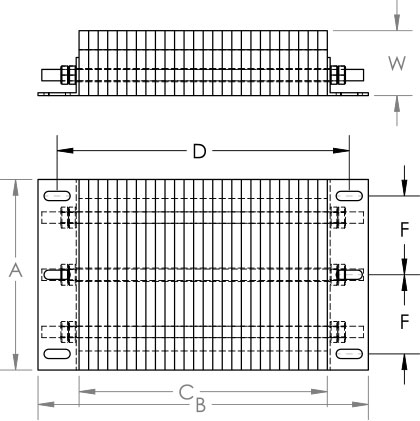

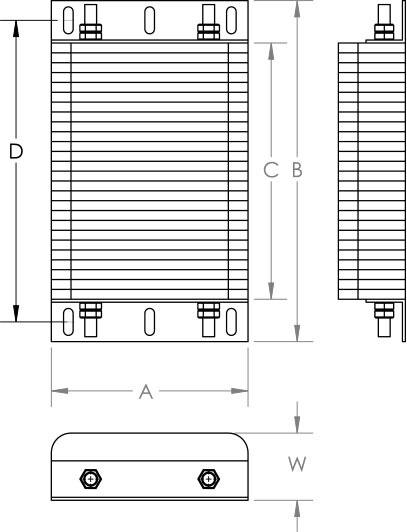

CODE	Thickness out from dock (w)		Overall sizes (AXB)		Rubber surface (AxC)		PCD (LENGTH) D		PCD (WIDTH) F
CODE	inch	mm	inch	mm	inch	mm	inch	MM	inch	MM
D110	4.5	114	6 x 6	152 x 405	6 x 11	152 x 280	14	355	3	75
D111	4.5	114	6 x 26	152 x 660	6 x 21	152 x 535	24	610	3	75
D112	4.5	114	6 x 38	152 x 965	6 x 33	152 x 840	36	915	3	75
D113	4.5	144	10 x 16	254 x 405	10 x 11	254 x 280	14	355	6	152
D114	4.5	144	10 x 20	254 x 510	10 x 15	254 x 380	18	455	6	152
D115	4.5	144	10 x 26	254 x 660	10 x 21	254 x 535	24	610	6	152
D116	4.5	144	10 x 38	254 x 965	10 x 33	254 x 840	36	915	6	152
D117	4.5	144	12 x 16	305 x 405	12 x 11	305 x 280	14	355	4	100
D118	4.5	144	12 x 20	305 x 510	12 x 15	305 x 380	18	455	4	100
D119	4.5	144	12 x 26	305 x 660	12 x 21	305 x 535	24	610	4	100
D120	4.5	144	12 x 38	305 x 965	12 x 33	305 x 840	36	915	4	100
D121	4.5	144	20 x 13	510 x 330	20 x 8	510 x 205	11	280	7	175
D122	4.5	144	24 x 13	610 x 330	24 x 8	610 x 205	11	280	9	230
D123	4.5	144	36 x 13	915 x 330	36 x 8	915 x 205	11	280	10	254
D124	6	152	10 x 16	254 x 405	10 x 11	254 x 280	14	355	6	152
D125	6	152	10 x 26	254 x 660	10 x 21	254 x 535	24	610	6	152
D126	6	152	10 x 38	254 x 965	10 x 33	254 x 840	36	915	6	152
D127	6	152	20 x 13	510 x 330	20 x 8	510 x 205	11	280	7	175
D128	6	152	12 x 16	305 x 405	12 x 11	305 x 280	14	355	4	100
D129	6	152	12 x 26	305 x 660	12 x 21	305 x 535	24	610	4	100
D130	6	152	12 x 38	305 x 965	12 x 33	305 x 840	36	915	4	100
D131	6	152	24 x 13	610 X 330	24 x 8	610 x 205	11	280	9	230
D132	6	152	36 x 13	915 X 330	36 x 8	915 x 205	11	280	10	254
