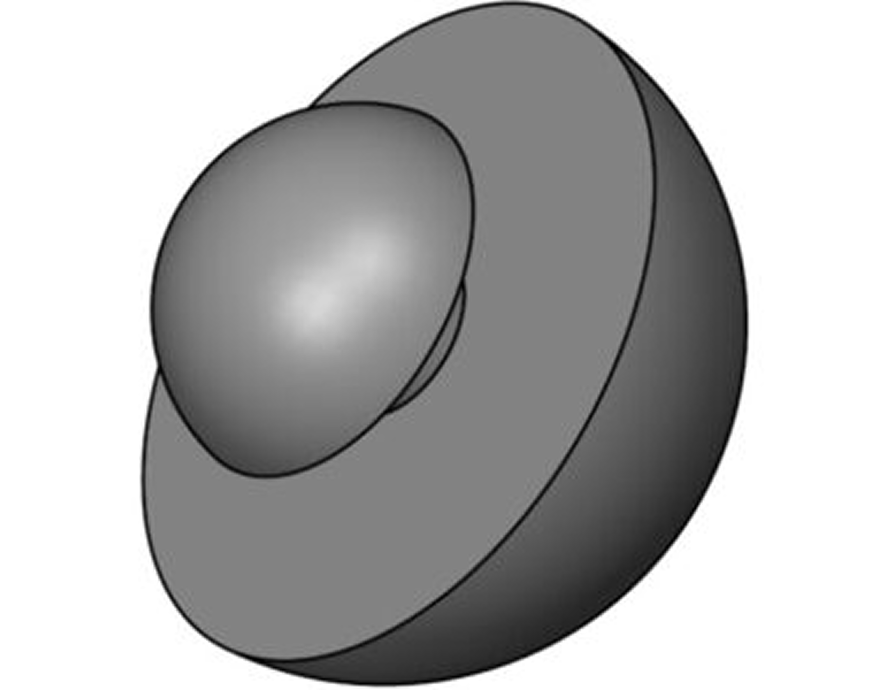

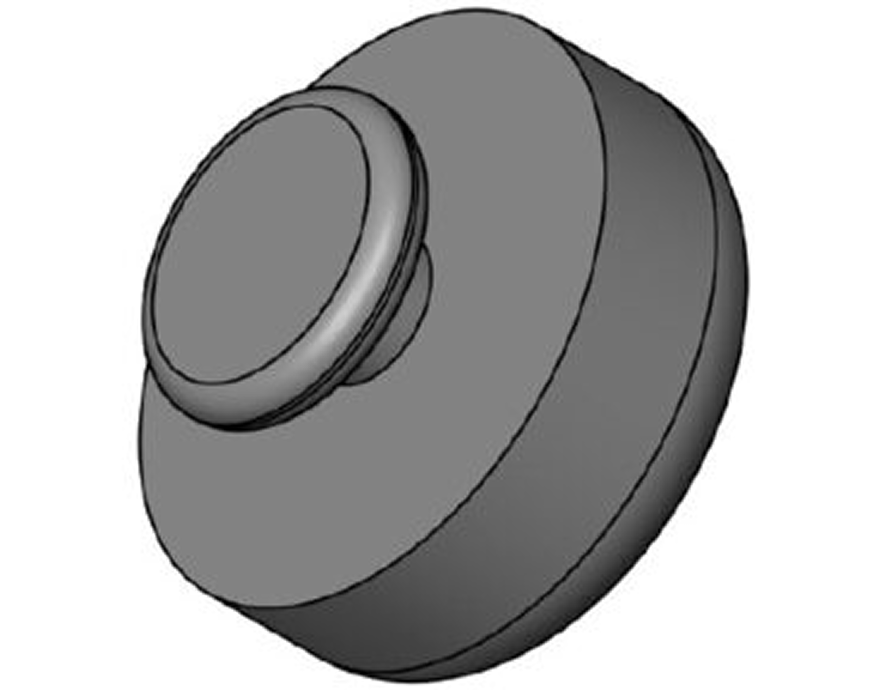

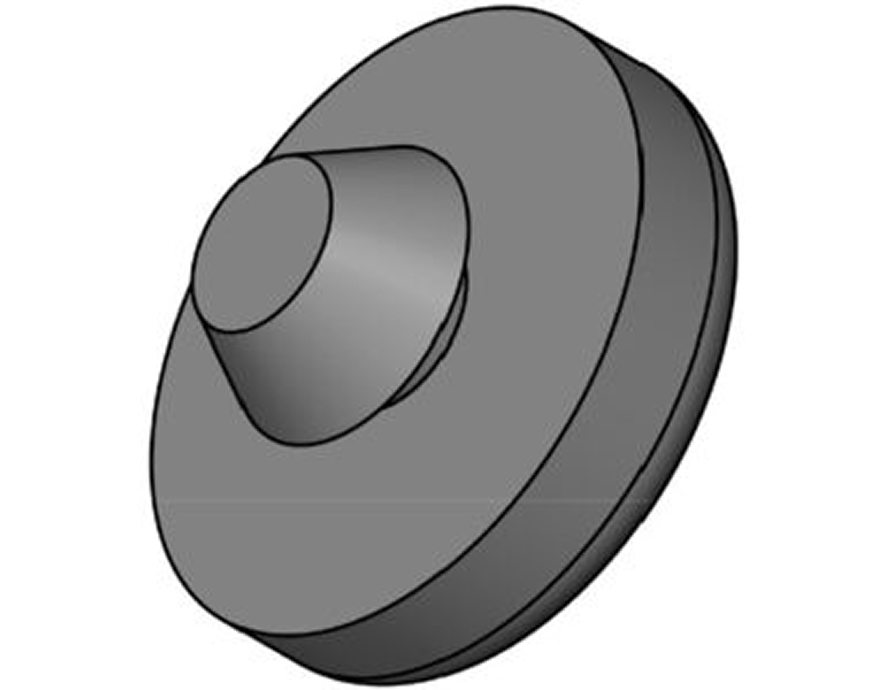

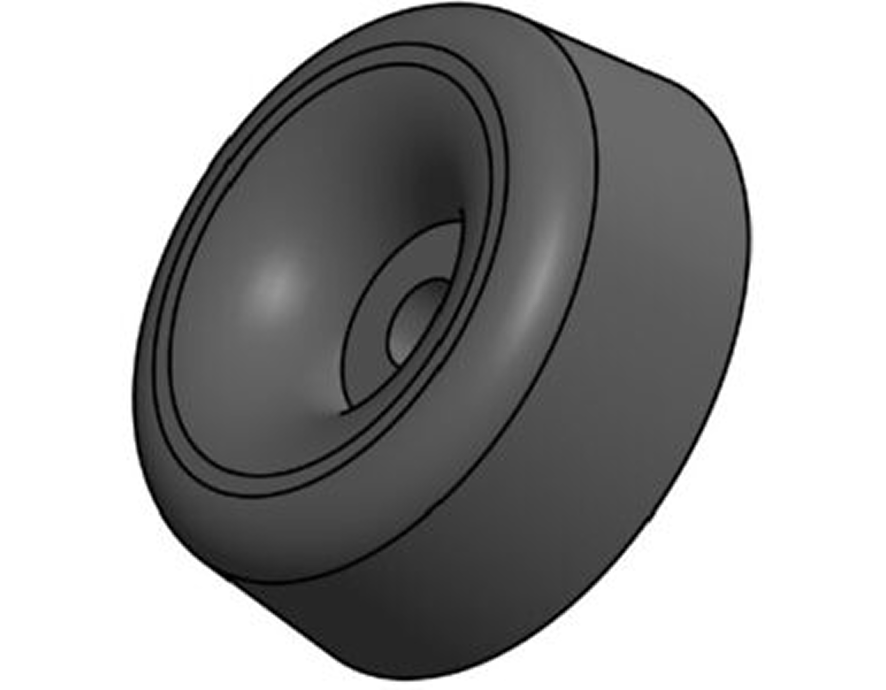

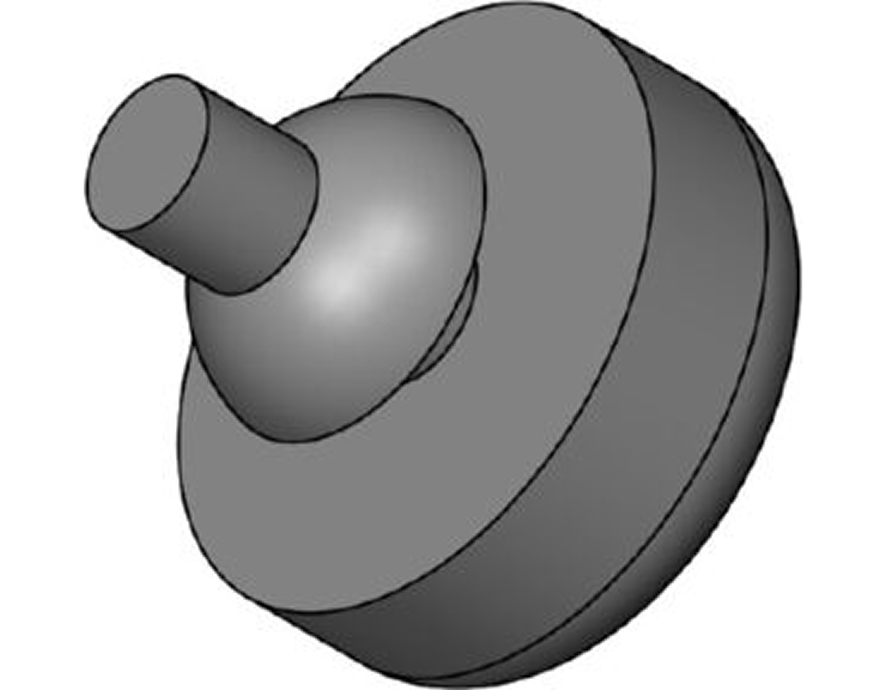

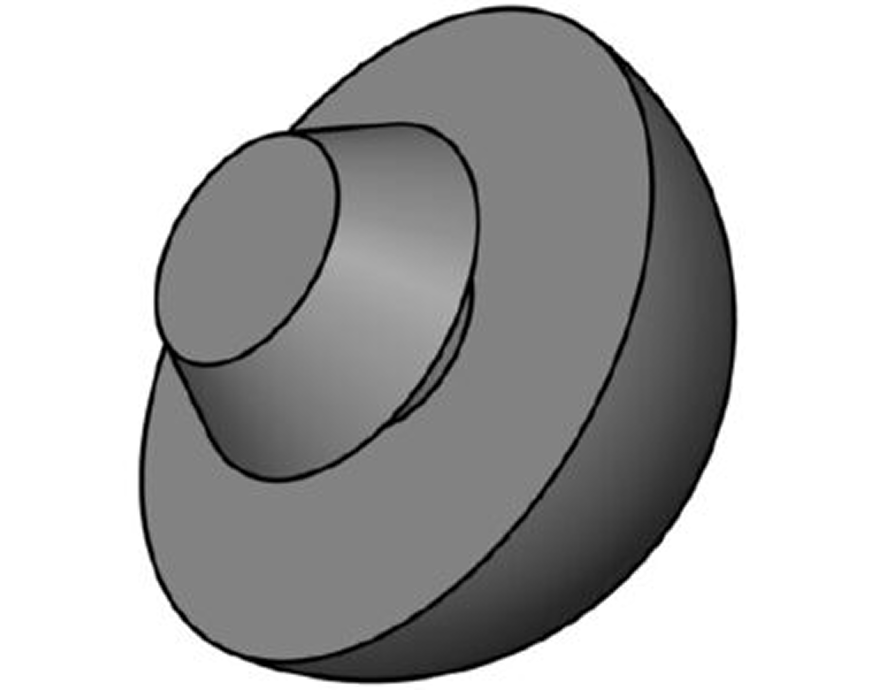

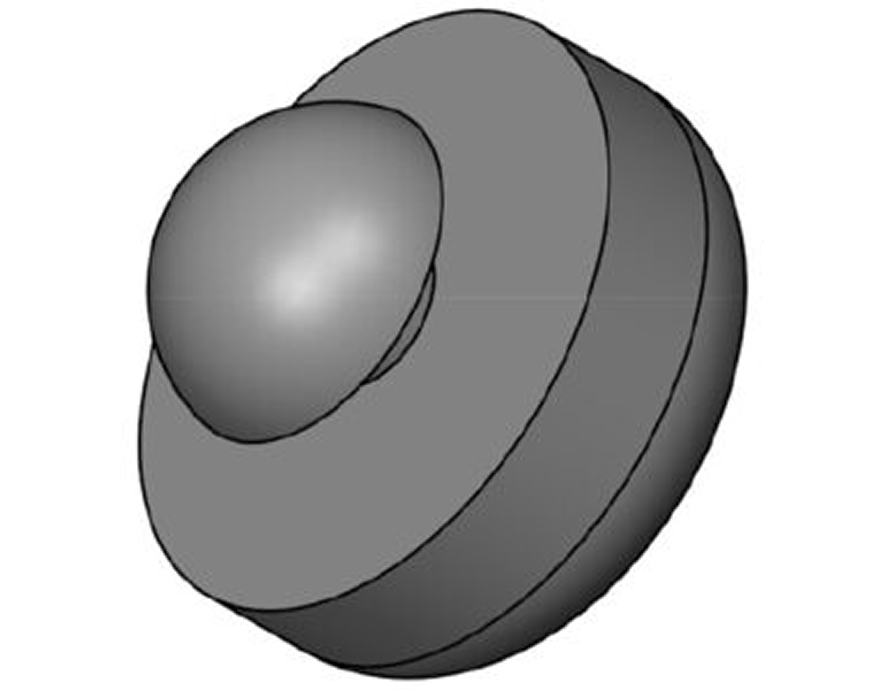

TYPES OF BUTTON BUMPERS
type 1
type 2
type 3
type 4
type 5
type 6
type 7

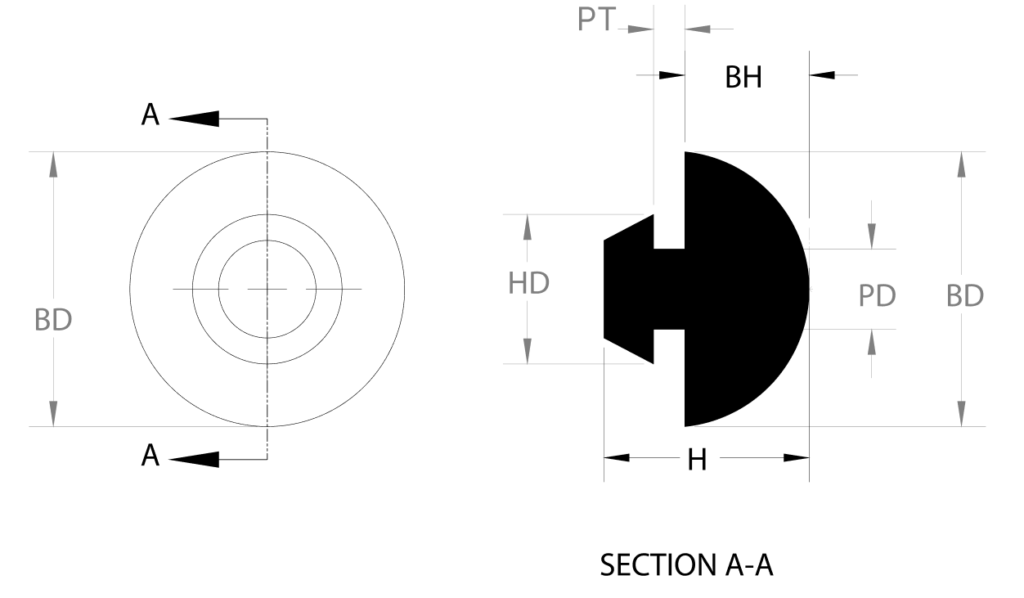

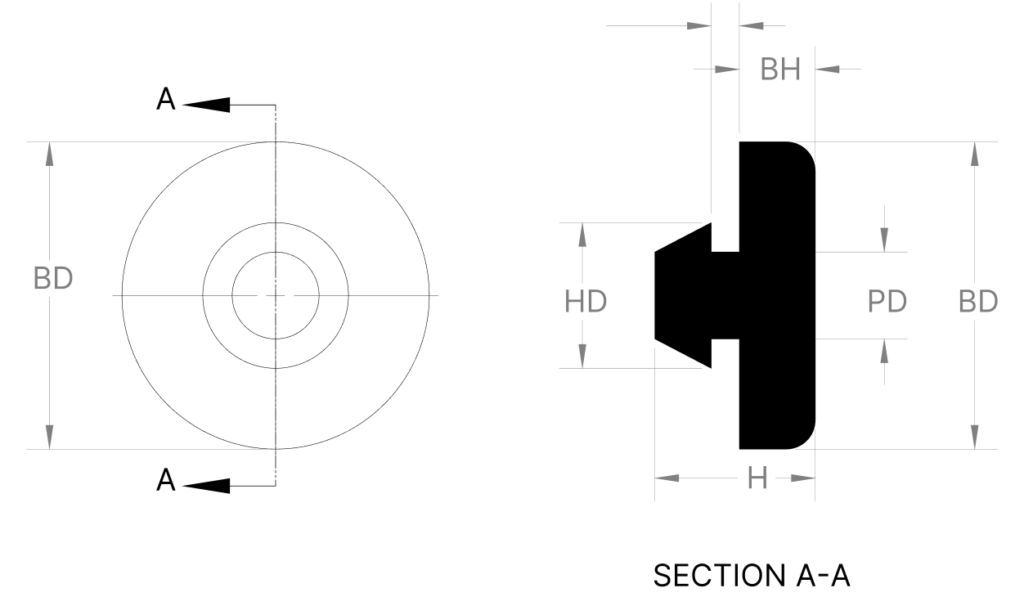

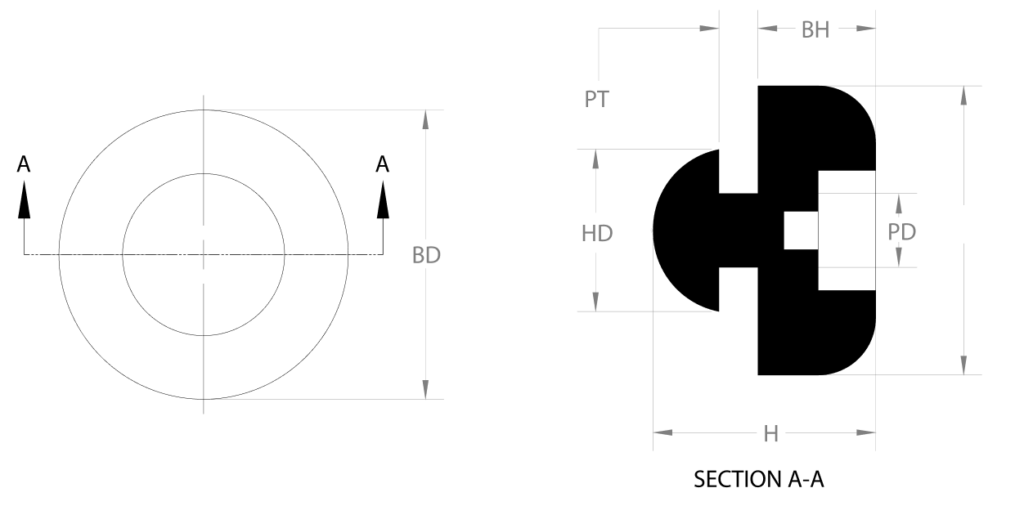

DIMENSIONS
| PRODUCT CODE
BUTTON BUMPER |
FIG NO. | BASE DIAMETER (BD) | TOTAL HEIGHT (H) | PANEL DIAMETER (PD) | HEAD DIAMETER (HD) | BASE HEIGHT (BH) | PANEL THICKNESS (PT) |
| BB 1 | 5 | 6 | 4.2 | 3.2 | 5.6 | 0.8 | 2.4 |
| BB 2 | 5 | 7.9 | 4.8 | 3.2 | 4.8 | 1.2 | 0.8 |
| BB 3 | 7 | 12.7 | 3.6 | 5.2 | 7.5 | 1.2 | 1.2 |
| BB 4 | 2 | 5.1 | 4.2 | 0.7 | 2.6 | 1.2 | 1.8 |
| BB 5 | 6 | 9.6 | 12.7 | 4.3 | 5.9 | 1.5 | 1 |
| BB 6 | 1 | 12.2 | 8.7 | 3.2 | 3.7 | 1.6 | 6 |
| BB 7 | 1 | 13.5 | 6.8 | 6 | 7.5 | 1.6 | 1.2 |
| BB 8 | 7 | 9.5 | 4.8 | 6.4 | 7.9 | 1.6 | 1.6 |
| BB 9 | 1 | 9.5 | 6.4 | 6.4 | 7.9 | 1.6 | 1.8 |
| BB 10 | 1 | 12.7 | 6.7 | 7.1 | 9.5 | 1.6 | 1.1 |
| BB 11 | 1 | 12.7 | 7.5 | 6.4 | 12.7 | 1.6 | 1.6 |
| BB 12 | 5 | 7.9 | 5.6 | 3.2 | 4.8 | 1.6 | 1.6 |
| BB 13 | 7 | 9.5 | 4.8 | 6.4 | 7.9 | 1.6 | 0.8 |
| BB 14 | 7 | 9.5 | 5.6 | 6.3 | 7.9 | 1.5 | 1.5 |
| BB 15 | 1 | 9.5 | 6.7 | 6.4 | 7.9 | 1.6 | 2.3 |
| BB 16 | 1 | 14.3 | 6.4 | 7.1 | 9.5 | 1.6 | 1.6 |
| BB 17 | 1 | 15.9 | 7.1 | 4.8 | 5.6 | 1.6 | 0.8 |
| BB 18 | 1 | 11.1 | 7.9 | 6.4 | 8.7 | 1.6 | 0.8 |
| BB 19 | 7 | 9.5 | 5.6 | 6.4 | 7.9 | 1.6 | 1.6 |
| BB 20 | 6 | 9.6 | 13.4 | 4.3 | 5.8 | 1.8 | 1 |
| BB 21 | 2 | 6.4 | 3.6 | 3.2 | 4.8 | 2 | 0.8 |
| BB 22 | 6 | 6.4 | 7 | 3.2 | 4.8 | 2 | 0.8 |
| BB 23 | 7 | 9.5 | 5.6 | 6.4 | 7.9 | 2 | 1.6 |
| BB 24 | 1 | 7.9 | 6.4 | 4.8 | 6.4 | 2 | 1.6 |
| BB 25 | 2 | 6.4 | 9.5 | 3.2 | 4.8 | 2.4 | 2.4 |
| BB 26 | 1 | 12.7 | 8.7 | 4.7 | 6.4 | 2.4 | 1.6 |
| BB 27 | 1 | 9.5 | 6.4 | 6.4 | 7.9 | 2.4 | 1.2 |
| BB 28 | 2 | 11.1 | 7.5 | 6 | 7.5 | 2.4 | 1.2 |
| BB 29 | S | 7.9 | 7.9 | 3.2 | 4.8 | 2.4 | 0.8 |
| BB 30 | 5 | 7.9 | 9 | 3.2 | 4.8 | 2.4 | 1.9 |
| BB 31 | 6 | 6.4 | 11.9 | 3.2 | 5.6 | 2.4 | 1 |
| BB 32 | 5 | 11.1 | 6.7 | 4.8 | 6.4 | 2.4 | 2 |
| BB 33 | 1 | 11.1 | 6.8 | 6.3 | 7.9 | 2.4 | 1.2 |
| BB 34 | 1 | 15.9 | 6.4 | 9.5 | 11.5 | 2.4 | 1 |
| BB 35 | 1 | 9.5 | 9.5 | 6.7 | 8.3 | 2.4 | 2.4 |
| BB 36 | 1 | 9.5 | 6.8 | 4 | 6.4 | 2.4 | 1.6 |
| BB 37 | 2 | 7.9 | 7.9 | 3.2 | 4.8 | 2.4 | 4.8 |
| BB 38 | 1 | 12.7 | 8.7 | 4.8 | 6.4 | 2.4 | 1.6 |
| BB 39 | 5 | 9.5 | 6 | 4 | 5.6 | 2.4 | 0.8 |
| BB 40 | 1 | 11.1 | 6.7 | 6.4 | 7.9 | 2.4 | 1.2 |
| BB 41 | 1 | 5.6 | 5.3 | 3 | 4 | 2.5 | 1.5 |
| BB 42 | 2 | 7.9 | 11.9 | 4.8 | 6 | 2.8 | 1.6 |
| BB 43 | 1 | 19.1 | 14.3 | 12.2 | 14.7 | 2.8 | 1.8 |
| BB 44 | 1 | 13.5 | 7.9 | 6 | 7.5 | 2.8 | 1.2 |
| BB 45 | 1 | 12.7 | 7.5 | 6.4 | 9.5 | 2.8 | 1.2 |
| BB 46 | 1 | 19.1 | 12.7 | 12.2 | 14.3 | 3.2 | 1.3 |
| BB 47 | 1 | 19.1 | 14.3 | 12.2 | 14.3 | 3.2 | 2.5 |
| BB 48 | 2 | 9.5 | 9.5 | 4.8 | 6.4 | 3.2 | 0.8 |
| BB 49 | 7 | 9.6 | 6.4 | 6.4 | 8 | 3.2 | 0.8 |
| BB 50 | 1 | 32 | 16.8 | 8 | 10.4 | 3.2 | 7.2 |
| BB 51 | 1 | 9.5 | 7.1 | 4.8 | 6.4 | 3.2 | 1.2 |
| BB 52 | 2 | 11.1 | 8.7 | 6.4 | 7.9 | 3.2 | 1.6 |
| BB 53 | 1 | 12.7 | 8.3 | 7.1 | 9.5 | 3.2 | 1.2 |
| BB 54 | 1 | 11.2 | 7.6 | 6.4 | 8 | 3.2 | 1.1 |
| BB 55 | S** | 11.1 | 7.5 | 6.4 | 7.9 | 3.2 | 1.6 |
| BB 56 | 7 | 9.5 | 8 | 6.4 | 7.9 | 3.2 | 3.2 |
| BB 57 | 1 | 12.7 | 11.1 | 4.8 | 6.8 | 3.2 | 1.3 |
| BB 58 | 7 | 9.5 | 6.4 | 6.4 | 9.5 | 3.2 | 1.6 |
| BB 59 | 1 | 9.5 | 10.3 | 6.4 | 7.1 | 3.2 | 1.2 |
| BB 60 | 7 | 9.5 | 6.4 | 6.4 | 7.9 | 3.2 | 0.8 |
| BB 61 | 1 | 9.5 | 10.3 | 6.4 | 7.5 | 3.2 | 1.6 |
| BB 62 | 1 | 9.5 | 9.9 | 4.4 | 6.4 | 3.2 | 2.8 |
| BB 63 | S** | 11.1 | 6.7 | 6.4 | 7.9 | 3.2 | 1 |
| BB 64 | 1 | 9.5 | 7.9 | 4.8 | 6.4 | 3.2 | 1.6 |
| BB 65 | 1 | 9.5 | 7.9 | 6.4 | 7.9 | 3.2 | 1.6 |
| BB 66 | 2 | 9.5 | 6.4 | 4 | 6.4 | 3.2 | 1.6 |
| BB 67 | 2 | 9.5 | 11.1 | 4.8 | 6.7 | 3.2 | 1.2 |
| BB 68 | 5 | 11.1 | 12.7 | 6.4 | 9.5 | 3.2 | 1.6 |
| BB 69 | 2 | 11.1 | 8.3 | 6 | 7.1 | 3.2 | 1.2 |
| BB 70 | 1 | 12.7 | 9.5 | 4.8 | 6.4 | 3.2 | 1.6 |
| BB 71 | 1 | 12.7 | 10.3 | 6.4 | 9.5 | 3.2 | 1.6 |
| BB 72 | 7 | 15.9 | 7.1 | 10.3 | 13.5 | 3.2 | 2.4 |
| BB 73 | 1 | 9.5 | 8.7 | 4.8 | 6.4 | 3.2 | 2.4 |
| BB 74 | 5 | 14.2 | 9.2 | 7.2 | 9.5 | 3.1 | 2 |
| BB 75 | 1 | 12.7 | 7.9 | 6.4 | 7.9 | 3.2 | 1.2 |
| BB 76 | 1 | 15.9 | 8.7 | 6 | 7.9 | 3.2 | 1 |
| BB 77 | 1 | 15.9 | 7.9 | 7.9 | 11.1 | 3.2 | 1.2 |
| BB 78 | 1 | 12.7 | 7.9 | 9.5 | 13.1 | 3.2 | 1.6 |
| BB 79 | 1 | 12.7 | 12.7 | 6.4 | 9.9 | 3.2 | 6.4 |
| BB 80 | 6 | 9.7 | 18.3 | 4.3 | 6.9 | 3.2 | 1.3 |
| BB 81 | 1 | 12.7 | 21.4 | 8.8 | 11.1 | 3.2 | 13.5 |
| BB 82 | 5 | 12.7 | 8.8 | 6.3 | 7.9 | 3.1 | 3.1 |
| BB 83 | 1 | 12.7 | 10.3 | 4.8 | 6.4 | 3.2 | 2.4 |
| BB 84 | 5 | 13.6 | 10.4 | 6.3 | 8.8 | 3.1 | 3.1 |
| BB 85 | 2 | 12.7 | 12.7 | 2.3 | 8.7 | 3.2 | 1.6 |
| BB 86 | 1 | 22.2 | 12.7 | 13.6 | 17.5 | 3.2 | 1.2 |
| BB 87 | 1 | 12.7 | 9.5 | 4.8 | 5.6 | 3.2 | 1.6 |
| BB 88 | 1 | 19.1 | 14.3 | 8.4 | 11.1 | 3.2 | 4.8 |
| BB 89 | 5 | 7.9 | 7.1 | 3.2 | 4.8 | 3.2 | 0.8 |
| BB 90 | 5 | 14.3 | 9.5 | 6.4 | 8.7 | 3.2 | 3.2 |
| BB 91 | 1 | 7.9 | 6.7 | 4.8 | 6.4 | 3.2 | 1.2 |
| BB 92 | 1 | 7.9 | 6.4 | 4.8 | 6.4 | 3.2 | 1.6 |
| BB 93 | 5 | 14.3 | 9.1 | 7.1 | 9.5 | 3.2 | 2 |
| BB 94 | 5 | 9.5 | 6.4 | 6.4 | 7.9 | 3.2 | 1.6 |
| BB 95 | 2 | 9.5 | 9.5 | 4.8 | 6.4 | 3.2 | 0.8 |
| BB 96 | 4 | 22.2 | 6.7 | 7.9 | 12.7 | 3.2 | 1.2 |
| BB 97 | 2 | 11.1 | 8.7 | 5.6 | 7.1 | 3.6 | 1.6 |
| BB 98 | 6 | 14.3 | 14.3 | 6.4 | 9.5 | 3.6 | 1.6 |
| BB 99 | 1 | 12.7 | 9.5 | 6.4 | 8.9 | 3.8 | 1.6 |
| BB 100 | 2 | 20.6 | 8 | 6.4 | 8 | 3.8 | 0.8 |
| BB 101 | 2 | 6.3 | 9.2 | 2.7 | 4 | 3.9 | 2.7 |
| BB 102 | 3 | 9.5 | 6.7 | 4.8 | 6.7 | 4 | 1 |
| BB 103 | 1 | 19.1 | 8.7 | 9.3 | 14.3 | 4 | 2 |
| BB 104 | 6 | 12.7 | 28.8 | 6.4 | 8.7 | 4 | 3.2 |
| BB 105 | 6 | 12.7 | 20.6 | 6.4 | 8.7 | 4 | 3.2 |
| BB 106 | 1 | 12.7 | 11.1 | 6.4 | 8 | 4 | 0.8 |
| BB 107 | 2 | 8 | 14.3 | 4.8 | 6.4 | 4 | 0.8 |
| BB 108 | 6 | 12.7 | 14.5 | 6.4 | 7.9 | 4 | 2.4 |
| BB 109 | 1 | 14.3 | 8 | 8.7 | 10.7 | 4 | 1.6 |
| BB 110 | 6 | 15.9 | 27 | 7.5 | 9.5 | 4 | 1.2 |
| BB 111 | 1 | 9.5 | 8.8 | 6.4 | 8 | 4 | 1.6 |
| BB 112 | 6 | 12.7 | 12.7 | 6.4 | 7.9 | 4 | 0.8 |
| BB 113 | 6 | 15.9 | 28.6 | 7.5 | 9.5 | 4 | 3.2 |
| BB 114 | 6 | 12.7 | 15.9 | 4.4 | 6.4 | 4 | 0.8 |
| BB 115 | 5 | 12.7 | 8.8 | 6.4 | 7.9 | 4 | 1.6 |
| BB 116 | 4 | 12.7 | 8.8 | 6.3 | 7.9 | 4 | 1.5 |
| BB 117 | 2 | 20.6 | 8.8 | 6.4 | 7.9 | 4 | 1.6 |
| BB 118 | 1 | 7.9 | 10.8 | 4.4 | 5.6 | 4 | 4.9 |
| BB 119 | 5 | 12.7 | 10.3 | 4.8 | 6.4 | 4 | 1.6 |
| BB 120 | 6 | 11.1 | 20.2 | 4.8 | 6.4 | 4 | 1.2 |
| BB 121 | 5 | 12.7 | 8.7 | 6.4 | 7.9 | 4 | 1.6 |
| BB 122 | 1 | 12.7 | 10.3 | 4.8 | 6.4 | 4 | 1.6 |
| BB 123 | 5 | 14.3 | 7.9 | 8.7 | 10.3 | 4 | 1.6 |
| BB 124 | 3 | 9.7 | 11 | 4.8 | 6.9 | 4.1 | 1.4 |
| BB 125 | 2 | 12.7 | 10.3 | 6.4 | 7.9 | 4.3 | 1.2 |
| BB 126 | 6 | 8 | 10.3 | 3.6 | 6.4 | 4.4 | 1.6 |
| BB 127 | 6 | 22.2 | 19.8 | 5.6 | 8.7 | 4.4 | 3.2 |
| BB 128 | 1 | 9.5 | 8.7 | 6.4 | 7.9 | 4.4 | 1.6 |
| BB 129 | 2 | 12.7 | 10.3 | 6.4 | 7.9 | 4.4 | 1.2 |
| BB 130 | 6 | 22.9 | 22.9 | 6 | 9 | 4.5 | 5.3 |
| BB 131 | 6 | 5.8 | 13.5 | 3 | 5 | 4.5 | 3 |
| BB 132 | 6 | 16 | 28.5 | 7.6 | 9.7 | 4.7 | 1.3 |
| BB 133 | 6 | 9.4 | 17.4 | 4.7 | 7.6 | 4.7 | 1.6 |
| BB 134 | 3 | 9.5 | 9.5 | 4.8 | 6.7 | 4.8 | 1.6 |
| BB 135 | 3 | 9.5 | 11.1 | 4.8 | 6.7 | 4.8 | 3.2 |
| BB 136 | 1 | 19.1 | 14.3 | 1.2 | 14.7 | 4.8 | 1.3 |
| BB 137 | 1 | 19.1 | 14.3 | 1.2 | 14.7 | 4.8 | 1.8 |
| BB 138 | 1 | 11.1 | 9.1 | 6.4 | 7.9 | 4.8 | 1.2 |
| BB 139 | 2 | 7.9 | 15.1 | 4.7 | 6.4 | 4.8 | 0.8 |
| BB 140 | 1 | 12.7 | 9.9 | 7.1 | 9.5 | 4.8 | 1.2 |
| BB 141 | 6 | 6.4 | 14.3 | 3.2 | 5.6 | 4.8 | 1.2 |
| BB 142 | 7 | 9.5 | 7.1 | 6.4 | 8.7 | 4.8 | 1.2 |
| BB 143 | 1 | 12.7 | 10.7 | 7.1 | 9.5 | 4.8 | 2 |
| BB 144 | 2 | 9.5 | 12.7 | 4.8 | 6.4 | 4.8 | 1.6 |
| BB 145 | 2 | 9.5 | 11.9 | 4.8 | 6.4 | 4.8 | 0.8 |
| BB 146 | 6 | 9.5 | 17.5 | 5.2 | 6.7 | 4.8 | 1.2 |
| BB 147 | 5 | 11.1 | 11.1 | 6.4 | 7.9 | 4.8 | 3.2 |
| BB 148 | 5 | 12.7 | 9.5 | 4.8 | 6.4 | 4.8 | 1.6 |
| BB 149 | 2 | 12.7 | 11.1 | 6.4 | 7.9 | 4.8 | 1.6 |
| BB 150 | 1 | 9.5 | 9.5 | 6.7 | 8.7 | 4.8 | 0.8 |
| BB 151 | 1 | 12.7 | 11.1 | 4.8 | 6.4 | 4.8 | 1.6 |
| BB 152 | 1 | 12.7 | 11.1 | 6.4 | 7.9 | 4.8 | 0.8 |
| BB 153 | 4 | 8 | 10.3 | 4 | 5.8 | 4.8 | 3.2 |
| BB 154 | 1 | 19.1 | 11.1 | 8.7 | 11.9 | 4.8 | 3.2 |
| BB 155 | 2 | 12.7 | 11.9 | 6.4 | 7.9 | 4.8 | 2.5 |
| BB 156 | 6 | 12 | 20 | 6.4 | 7.9 | 4.8 | 1.6 |
| BB 157 | 6 | 9.5 | 17.5 | 4.8 | 7.1 | 4.8 | 1.3 |
| BB 158 | 1 | 19.1 | 19.1 | 6.4 | 9.5 | 4.8 | 1.6 |
| BB 159 | 7 | 9.5 | 7.5 | 6.4 | 8 | 4.8 | 1.6 |
| BB 160 | 4 | 25.4 | 11.1 | 12.7 | 15.9 | 4.8 | 3.2 |
| BB 161 | 1 | 11.1 | 9.1 | 6.4 | 7.9 | 4.8 | 1.2 |
| BB 162 | 4 | 25.4 | 11.1 | 12.7 | 15.9 | 4.8 | 3.2 |
| BB 163 | 5 | 9.5 | 8.3 | 4.8 | 6.4 | 5.2 | 0.8 |
| BB 164 | 6 | 11.1 | 22.6 | 5.6 | 8 | 5.2 | 0.9 |
| BB 165 | 6 | 16 | 22.4 | 5.6 | 8 | 5.6 | 4.8 |
| BB 166 | 1 | 9.5 | 11.9 | 5.6 | 7.5 | 5.6 | 1.6 |
| BB 167 | 1 | 9.5 | 10.3 | 6.4 | 7.9 | 5.6 | 1.6 |
| BB 168 | 1 | 11.9 | 12.7 | 7.1 | 9.5 | 5.6 | 0.8 |
| BB 169 | 7 | 10.3 | 10.3 | 6.4 | 8.7 | 5.6 | 3.2 |
| BB 170 | 7 | 10.3 | 10.3 | 6.4 | 8.7 | 5.6 | 3.2 |
| BB 171 | 2 | 12.7 | 9.9 | 6.4 | 8.7 | 6 | 0.8 |
| BB 172 | 1 | 12.7 | 14.7 | 6.4 | 9.1 | 6 | 0.8 |
| BB 173 | 4 | 12.7 | 9.9 | 6.4 | 7.9 | 6 | 0.8 |
| BB 174 | 6 | 5.6 | 11.3 | 2.9 | 4.8 | 6.4 | 1.5 |
| BB 175 | 3 | 12.7 | 11.1 | 6.4 | 8.7 | 6.4 | 1 |
| BB 176 | 5 | 12.7 | 11.1 | 6.3 | 7.9 | 6.3 | 1.5 |
| BB 177 | 3 | 12.7 | 12.7 | 6.4 | 8.7 | 6.4 | 3.2 |
| BB 178 | 3 | 12.7 | 11.1 | 6.4 | 8.7 | 6.4 | 1.6 |
| BB 179 | 1 | 22.2 | 12.7 | 7.9 | 10.3 | 6.4 | 2 |
| BB 180 | 1 | 9.5 | 11.1 | 4 | 5.6 | 6.4 | 0.8 |
| BB 181 | 1 | 15.9 | 11.9 | 4.8 | 6.4 | 6.4 | 0.6 |
| BB 182 | 1 | 15.9 | 11.9 | 6 | 7.9 | 6.4 | 1 |
| BB 183 | 1 | 15.9 | 11.9 | 7.9 | 9.9 | 6.4 | 1.2 |
| BB 184 | 6 | 12.7 | 20.8 | 6.3 | 9.5 | 6.3 | 3.1 |
| BB 185 | 1 | 12.7 | 10.7 | 7.1 | 10.3 | 6.4 | 1.2 |
| BB 186 | 1 | 12.7 | 21 | 6.4 | 8.7 | 6.4 | 2 |
| BB 187 | 6 | 11.9 | 21.4 | 6.4 | 9.5 | 6.4 | 1.2 |
| BB 188 | 1 | 15.9 | 11.1 | 6.4 | 8.7 | 6.4 | 1.6 |
| BB 189 | 1 | 22.2 | 17.9 | 7.9 | 10.3 | 6.4 | 7.1 |
| BB 190 | 6 | 12.7 | 17.8 | 6.4 | 8.9 | 6.4 | 3.2 |
| BB 191 | 1 | 15.9 | 11.9 | 7.9 | 9.5 | 6.4 | 2.4 |
| BB 192 | 5 | 14.3 | 9.5 | 6.4 | 9.5 | 6.4 | 1.2 |
| BB 193 | 5 | 12.7 | 11.1 | 6.4 | 7.9 | 6.4 | 1.6 |
| BB 194 | 1 | 13 | 16.1 | 6.5 | 8.9 | 6.9 | 3.2 |
| BB 195 | 6 | 4.6 | 11.3 | 3.2 | 4.6 | 7.1 | 1.1 |
| BB 196 | 6 | 12.7 | 23.8 | 6.4 | 9.4 | 7.1 | 5.1 |
| BB 197 | 4 | 25.4 | 13.6 | 12.7 | 15.9 | 7.1 | 3.2 |
| BB 198 | 6 | 12.7 | 23.8 | 6.4 | 9.1 | 7.1 | 5.1 |
| BB 199 | 1 | 12.7 | 11.1 | 6.4 | 7.9 | 7.5 | 1.6 |
| BB 200 | 6 | 9.7 | 16.3 | 3.6 | 6.4 | 7.9 | 0.8 |
| BB 201 | 3 | 12.7 | 14.3 | 9.5 | 11.9 | 7.9 | 1 |
| BB 202 | 3 | 15.9 | 14.3 | 9.5 | 11.9 | 7.9 | 1.6 |
| BB 203 | 1 | 11.1 | 15.9 | 7.9 | 10.3 | 7.9 | 0.8 |
| BB 204 | 1 | 12.7 | 14.3 | 5.2 | 6.4 | 7.9 | 1.6 |
| BB 205 | 6 | 12.7 | 24.2 | 6.4 | 9.5 | 7.9 | 3.2 |
| BB 206 | 6 | 9.5 | 19.8 | 6 | 7.9 | 7.9 | 1 |
| BB 207 | 1 | 12.7 | 14.3 | 6.4 | 7.9 | 7.9 | 3.6 |
| BB 208 | 5 | 25.4 | 17.5 | 12.7 | 17.5 | 7.9 | 4.8 |
| BB 209 | 6 | 7.9 | 15.7 | 3 | 4.8 | 7.9 | 1.5 |
| BB 210 | 5 | 14.3 | 11.9 | 8.7 | 10.3 | 7.9 | 1.6 |
| BB 211 | 5 | 25.4 | 17.5 | 12.7 | 17.5 | 7.9 | 4.8 |
| BB 212 | 5 | 12.7 | 14.8 | 6.4 | 9.5 | 8 | 2.4 |
| BB 213 | 6 | 9.7 | 23.7 | 5.3 | 7.3 | 8.2 | 3 |
| BB 214 | 5 | 15.9 | 16.3 | 7.1 | 11.1 | 8.7 | 3.2 |
| BB 215 | 1 | 14.3 | 15.2 | 7.9 | 10.2 | 8.9 | 0.8 |
| BB 216 | 6 | 7 | 24 | 4 | 6 | 9 | 2 |
| BB 217 | 1 | 14.3 | 16.7 | 6.4 | 7.5 | 9.1 | 0.8 |
| BB 218 | 6 | 9.7 | 21.9 | 5.9 | 7.9 | 9.1 | 1.6 |
| BB 219 | 6 | 8.1 | 23.4 | 4.1 | 7.1 | 9.1 | 1.6 |
| BB 220 | 6 | 7.9 | 17.5 | 3.2 | 4.8 | 9.5 | 1.6 |
| BB 221 | 1 | 12.7 | 15.4 | 5.2 | 6.4 | 9.5 | 1.6 |
| BB 222 | 2 | 12.7 | 23.8 | 6.4 | 9.5 | 9.5 | 3.2 |
| BB 223 | 1 | 14.3 | 17.5 | 6.4 | 8.7 | 9.5 | 0.8 |
| BB 224 | 1 | 15.9 | 19.1 | 6 | 7.9 | 9.5 | 3.2 |
| BB 225 | 1 | 14.3 | 17.5 | 6.4 | 8.7 | 9.5 | 1.2 |
| BB 226 | 2 | 19.1 | 16.7 | 8.1 | 12.7 | 9.5 | 1.1 |
| BB 227 | 1 | 15.9 | 18 | 6 | 7.6 | 9.6 | 2 |
| BB 228 | 6 | 22.2 | 26.2 | 6.4 | 10.3 | 10.3 | 2 |
| BB 229 | 1 | 12.7 | 16.7 | 4.8 | 6.4 | 10.3 | 1.6 |
| BB 230 | 1 | 9.5 | 18.4 | 6.4 | 8.7 | 12.7 | 1.6 |
| BB 231 | 1 | 9.5 | 17.8 | 6.8 | 8.7 | 12.7 | 0.8 |
| BB 232 | 5 | 11.1 | 16.7 | 6.4 | 8.7 | 12.7 | 0.8 |
| BB 233 | 1 | 25.4 | 25.4 | 9.5 | 12.7 | 12.7 | 3.2 |
| BB 234 | 6 | 25.4 | 40.7 | 10.7 | 14.3 | 12.7 | 1.6 |
| BB 235 | 6-I | 25 | 32.8 | 6.2 | 9.4 | 13 | 3.2 |
| BB 236 | 1 | 12.7 | 23 | 6.4 | 9.1 | 14.3 | 1.6 |
| BB 237 | 6 | 12.7 | 29.2 | 6.2 | 9.7 | 14.3 | 2.8 |
| BB 238 | 1 | 12.7 | 25.8 | 6.4 | 8.7 | 17.5 | 1.6 |
| BB 239 | 2 | 12.7 | 31.7 | 6.4 | 9.5 | 17.5 | 3.2 |
| BB 240 | 4 | 19.4 | 25.4 | 9.5 | 12.7 | 19.1 | 3.2 |
