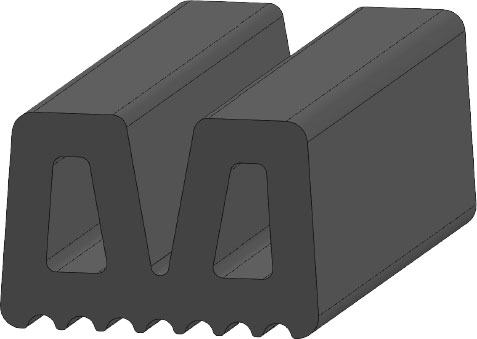

W- TYPE FENDER
DESCRIPTION
W Type fenders are installed on to the bow of Ocean going tugs, to protect the hull against damages caused during pushing and pulling operations / towage . These fenders are installed in similar manner as those of key Hole Fenders.
features
- Extreme-duty design
- Twin-leg attachment
- Open bone for easy installation
- Grooved for extra grip
- Fits around tight bends
Applications
- Ocean-going tugs
- Icebreakers
- Large harbour tugs
- Bridge and pile protection

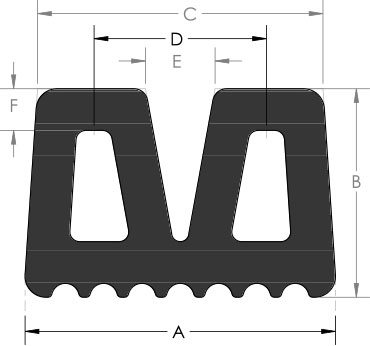

DIMENSIONS
| A | B | C | D | E | F | K | Ø Pin | Flat Bar | length |
| 320 | 200 | 280 | 180 | 100 | 67 | 50 | 25 | 100×20 | 2000 |
| 400 | 250 | 350 | 220 | 110 | 75 | 55 | 30 | 120×20 | 2000 |
| 480 | 300 | 426 | 269 | 135 | 90 | 65 | 40 | 140×20 | 2000 |
| 500 | 450 | 420 | 255 | 90 | 100 | 75 | 40 | 150×20 | 2000 |
The above table covers our standard sizes only.
However we can design and build to suit customer’s individual requirements.
All Dimensions in mm. Overall Dimensional Tolerances 35%
