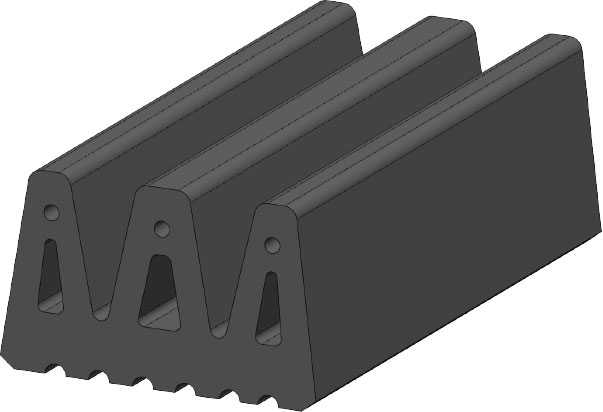

M-TYPE FENDER
DESCRIPTION
M Type fenders are installed on to the bow Ocean going vessels and tugs to protect the hull of against damages caused during heavy operations. These fenders are installed in similar manner as those of key Hole Fenders.
features
- Heavy duty design
- Grooved for extra grip
- Fits around tight bends
- Triple leg attachment
Options
- All types of tugs
- Pontoon protection

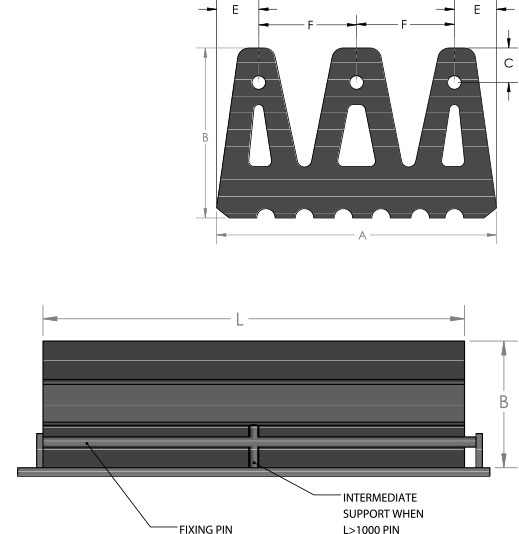

DIMENSIONS
| A | B | C | ØD | E | F | ØPin | FlatBar | Length |
| 400 | 200 | 40 | 23 | 50 | 150 | 20 | 100×15 | 2000 |
| 500 | 250 | 50 | 27 | 60 | 190 | 24 | 125×20 | 2000 |
| 600 | 300 | 60 | 33 | 70 | 230 | 30 | 150×20 | 2000 |
The above table covers our standard sizes only.
However we can design and build to suit customer’s individual requirements.
All Dimensions in mm. Overall Dimensional Tolerances 35%
