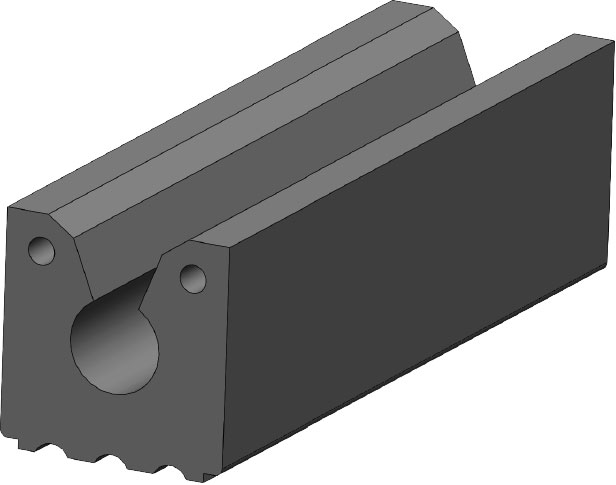

KEY HOLE FENDER
DESCRIPTION
Key Hole Fenders are used as an alternative to W-fenders incase of extremely heavy loads. The keyhole cross-section is very tough but can be curved around the hull. Fixing / mounting is very simple with this type of fender.
features
- Heavy duty design
- Traditional, proven shape
- Grooved or plain surface
- Fits around bends

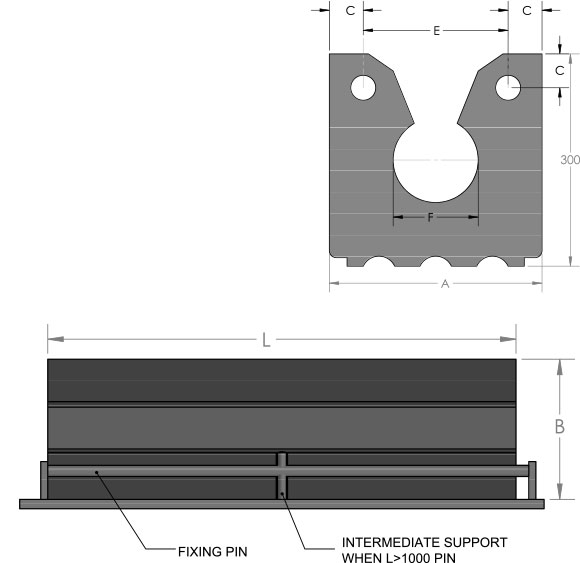

DIMENSIONS
| A | B | C | ØD | E | ØG | Ø Pin | Flat Bar | Length |
| 200 | 200 | 35 | 28 | 130 | 90 | 25 | 100×15 | 2000 |
| 250 | 250 | 50 | 33 | 150 | 100 | 30 | 125×20 | 2000 |
| 300 | 300 | 60 | 33 | 180 | 115 | 30 | 150×20 | 2000 |
| 350 | 350 | 70 | 33 | 210 | 125 | 30 | 175×25 | 2000 |
The above table covers our standard sizes only.
However we can design and build to suit customer’s individual requirements.
All Dimensions in mm. Overall Dimensional Tolerances 35%
