D-D TYPE FENDERS

DESCRIPTION

BULWARK speed humps offer the best solutions for slowing down traffic safely. Installing our ramps will reduce the risk of accidents on your site. As manufacturers, our product range gives you best quality rubber, with the longest working life.

APPLICATIONS

  • Jetties and wharves for small craft
  • Tugs and workboats
  • Pontoon protection
  • Inland waterways
  • General purpose fendering
f2_1
f2_2

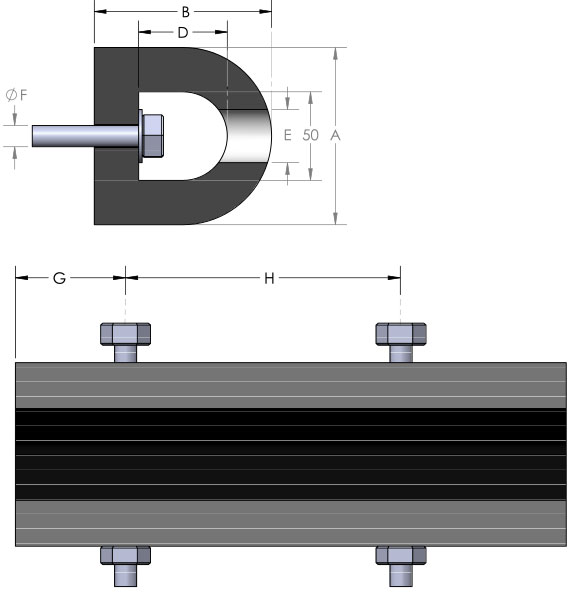

DIMENSIONS

A B C D E ØF G H Flat Bar Bolt Size Length
75 75 35 35 30 15 100 200 35×5 M12 3000
100 100 50 50 30 15 100 200 40×5 M12 3000
125 125 60 60 40 20 125 250 50×6 M16 3000
150 150 75 75 40 20 125 250 60×8 M20 3000
200 200 100 100 50 25 175 350 80×10 M24 3000
250 250 125 125 60 30 175 350 90×12 M24 3000
300 300 150 150 60 30 175 350 110×12 M24 3000
350 350 175 175 75 35 175 350 130×15 M30 3000
400 400 200 200 75 35 175 350 150×15 M30 3000
500 500 250 250 90 45 200 400 180×20 M36 3000

The above table covers our standard sizes only.
However we can design and build to suit customer’s individual requirements.
All Dimensions in mm. Overall Dimensional Tolerances 35%
