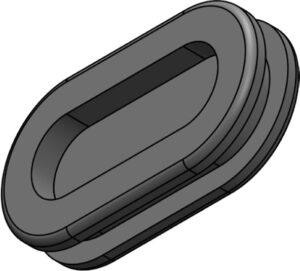

Blind hole oval Grommet
DIMENSIONS
| PRODUCT CODE Blind hole oval Grommet | INNER DIAMETER | OUTER DIAMETER | PANEL DIAMETER | PANEL THICKNESS | TOTAL THICKNESS |
| BG BHO 1 | 10×25 | 15×30 | 13×27 | 3 | 10 |
| BG BHO 2 | 16×31 | 25×40 | 20×35 | 1.5 | 5.5 |
| BG BHO 3 | 17×42 | 23×48 | 20×44 | 3 | 10 |
| BG BHO 4 | 16×42 | 25×51 | 20×45 | 2 | 9 |
| BG BHO 5 | 16×42 | 25×51 | 20×50 | 2 | 9 |
| BG BHO 6 | 21×37 | 30×45 | 25×40 | 2 | 9 |
| BG BHO 7 | 26×71 | 44×83 | 30×75 | 4 | 9 |
| BG BHO 8 | 24×78 | 37×91 | 30×85 | 2 | 11 |
| BG BHO 9 | 26×90 | 41×105 | 35×100 | 2.5 | 9.5 |
| BG BHO 10 | 29×67 | 46×84 | 37×75 | 2 | 11 |
| BG BHO 11 | 26×110 | 48×128 | 40×120 | 3 | 10 |
| BG BHO 12 | 26×110 | 48×128 | 40×120 | 2.5 | 9.5 |
| BG BHO 13 | 33×77 | 46×90 | 40×83 | 3 | 14 |
| BG BHO 14 | 45×70 | 58×83 | 50×75 | 3 | 14 |
