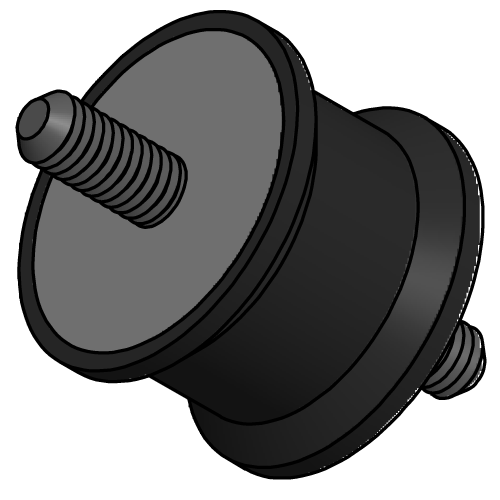

PROFILE BOBBIN - MALE/MALE
DESCRIPTION
Profile Bobbin Mounts are ideal for applications where high dynamic forces are applied, particularly where applications require high Shear/Compression. The oversized end metals allow for an improved bonded interface between the rubber & metal, to increase the fatigue life when the parts are used for high dynamic applications.
APPLICATIONS
• Vibratory rollers.
• Sieves and Grading equipment.
• Industrial Machinery including diesel engines.
Material
Natural Rubber (NR)

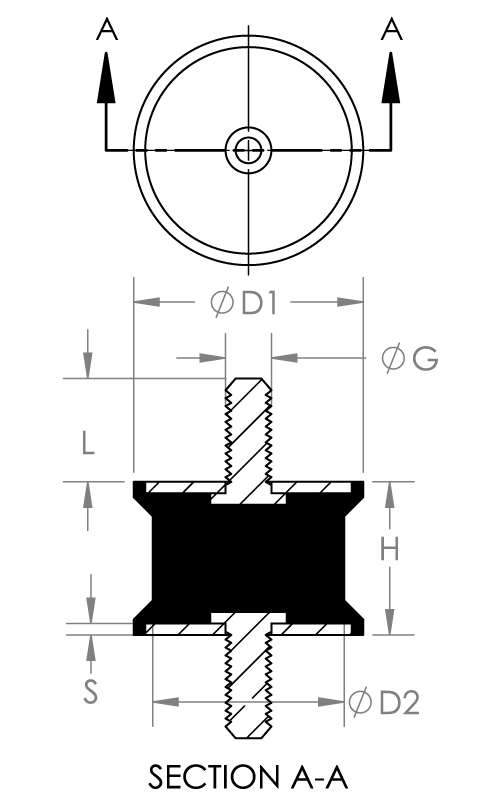

H = Height L = Thread Length D1 = Mount Diameter D2 = Mount Center Diameter G =Thread Size S = Metal Thickness
DIMENSIONS
| Article No. | H (mm) | L (mm) | D1 (mm) | D2 (mm) | G | S (mm) | Max Load 45 ShA (Kg) |
Max Load 60 ShA (Kg)
|
| BBMM2030 | 30 | 18 | 20 | 15 | M6 | 2 | 6 | 11.5 |
| BBMM2040 | 40 | 18 | 20 | 15 | M6 | 2 | 4.8 | 9.4 |
| BBMM2522 | 22 | 18 | 25 | 22 | M6 | 2 | 14.8 | 29 |
| BBMM4028 | 28 | 23 | 40 | 35 | M8 | 2 | 33 | 66 |
| BBMM4625 | 25 | 28 | 46 | 40 | M10 | 2 | 76 | 152 |
| BBMM5030 | 30 | 28 | 50 | 40 | M10 | 2 | 66 | 131 |
| BBMFM540 | 40 | 37 | 75 | 70 | M12 | 3 | 148 | 290 |
| BBMM10075 | 75 | 41 | 100 | 95 | M16 | 3 | 230 | 455 |
