Profile Bobbin - Interleaf
DESCRIPTION

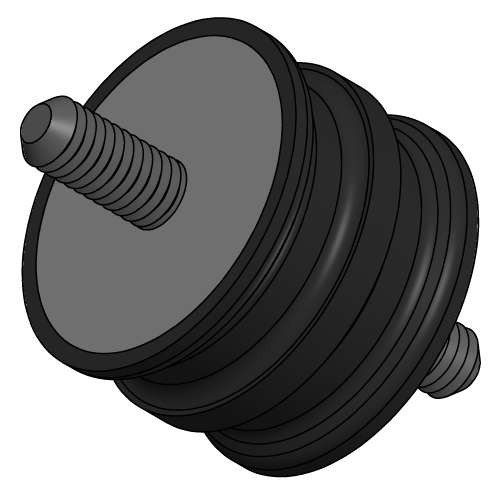

Interleaf Bobbin Mounts are produced with an integrally bonded interleaf metal to increase the load capacity, they are ideal where large compressive forces need to be accommodated with relatively small amounts of deflection on the product.
APPLICATIONS
• Vibratory rollers.
• Sieves and Grading equipment.
• Industrial Machinery including diesel engines
Material
Natural Rubber (NR)

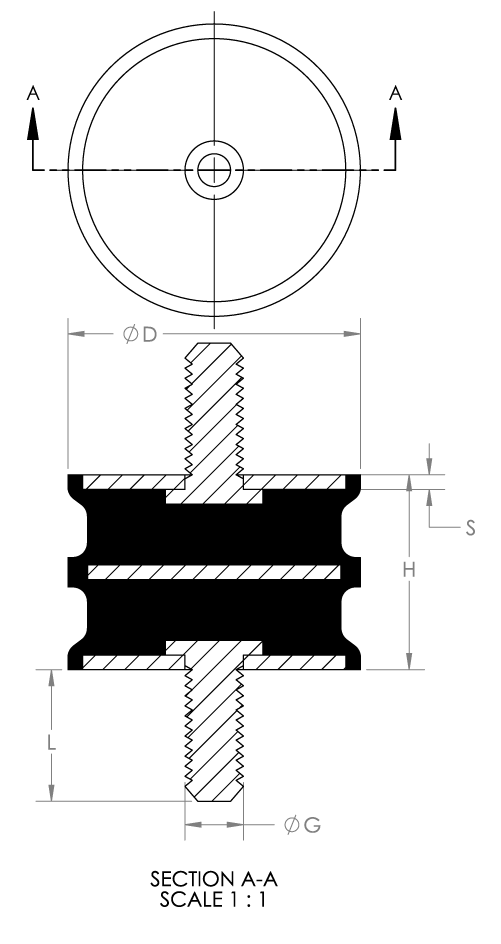

H = Height
D1 = Mount Diameter
D2 = Mount Center Diameter
G =Thread Size
T = Thread Depth
S = Metal Thickness
DIMENSIONS
| Article No. | H (mm) | L (mm) | D (mm) | s (MM) | G | 60 ShA (Max KG) | 70 ShA (Max KG) | Static Deflection (mm) |
| BIB1392* | 37 | 25 | 57 | 2 | M10 | 250 | 340 | 2.6 |
| BIB1388 | 37 | 25 | 57 | 2 | M10 | 140 | 198 | 3 |
