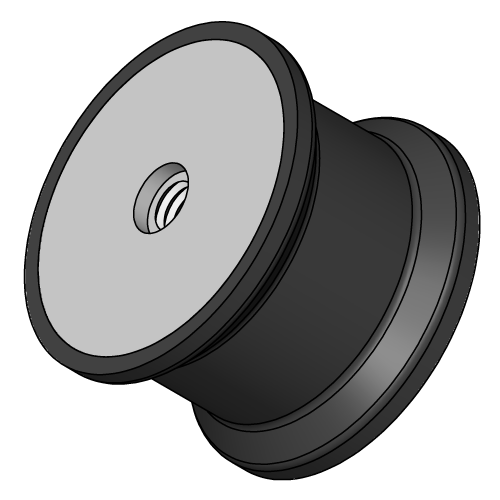

Profile Bobbin - Female/female

DESCRIPTION
Profile Bobbin Mounts are ideal for applications where high dynamic forces are applied, particularly where applications require high Shear/Compression. The oversized end metals allow for an improved bonded interface between the rubber & metal, to increase the fatigue life when the parts are used for high dynamic applications.
APPLICATIONS
• Vibratory rollers.
• Sieves and Grading equipment.
• Industrial Machinery including diesel engines.
Material
Natural Rubber (NR)

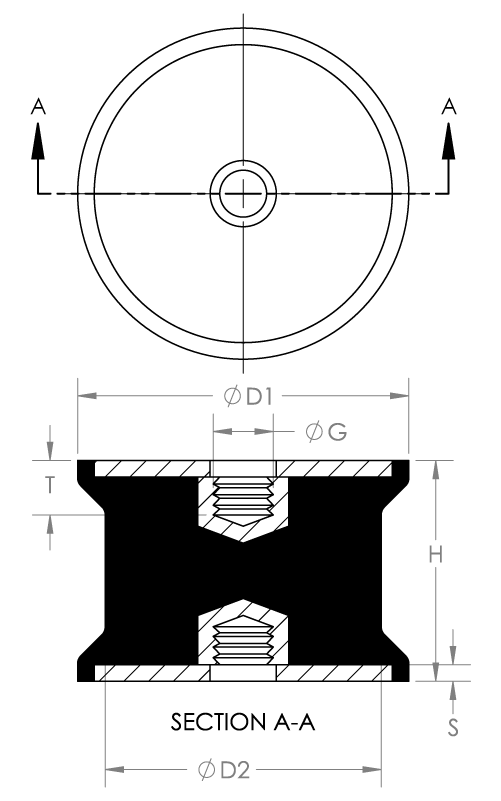

H = Height
D1 = Mount Diameter
D2 = Mount Center Diameter
G =Thread Size
T = Thread Depth
S = Metal Thickness
DIMENSIONS
Article No. | H (mm) | D1 (mm) | D2 (mm) | G | T (mm) | S (mm) | Max Load 45 ShA (Kg) | Max Load 60 ShA (Kg) |
BBFF2030 | 30 | 20 | 15 | M6 | 6 | 2 | 4.5 | 8.7 |
BBFF2040 | 40 | 20 | 15 | M6 | 6 | 2 | 3.2 | 6.3 |
BBFF2522 | 22 | 25 | 22 | M6 | 6 | 2 | 12.5 | 24.7 |
BBFF4028 | 28 | 40 | 35 | M8 | 8 | 2 | 22 | 43 |
BBFF4625 | 25 | 46 | 40 | M10 | 10 | 2 | 64 | 125 |
BBFF5030 | 30 | 50 | 40 | M10 | 10 | 2 | 56 | 111 |
BBFF7540 | 40 | 75 | 70 | M12 | 12 | 3 | 135 | 267 |
BBFF10075 | 75 | 100 | 95 | M16 | 16 | 3 | 202 | 400 |
