Plate Mount - Type 1
DESCRIPTION

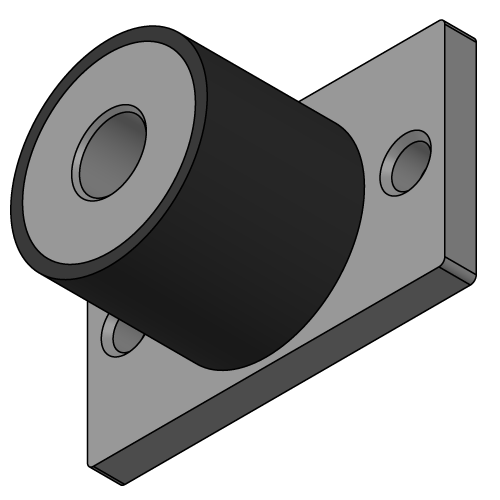

The Plate Mount is a versatile, compact and inexpensive flange type mount, typically used in applications involving the transportation of equipment. It is designed to achieve high shock damping under compression loads.
APPLICATIONS
• Mobile generator trailers
• Static generators
• Large Pumps
• Compressors
• Engine mounts
Material
Natural Rubber (NR)
H = Total Height
L = Total Length
D = Diameter
G = Thread Size
A = Hole Distance
S = Metal Thickness
W = Width
K = Hole Diameter
I = Thread Depth

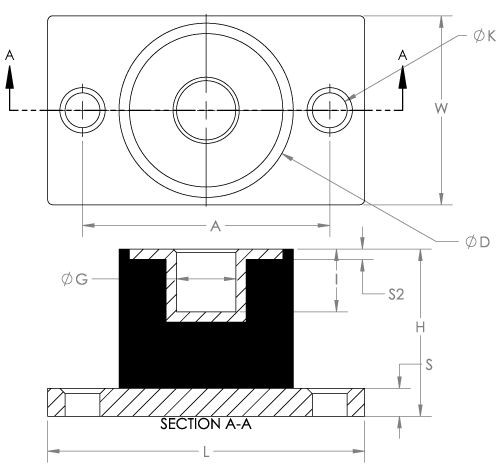

DIMENSIONS
| Article No. | H (mm) | L (mm) | D (mm) | G (mm) | A (mm) | S2 (mm) | S (mm) | W (mm) | K (mm) | I (mm) |
| BPLM25 | 33 | 80 | 25 | M6 | 60 | 1.5 | 3 | 30 | 9 | 6.5 |
| BPLM35 | 33 | 80 | 30 | M8 | 60 | 1.5 | 3 | 30 | 9 | 7 |
| BPLM50 | 33 | 100 | 50 | M10 | 75 | 3 | 3 | 60 | 9 | 10 |
| BPLM75 | 44 | 130 | 75 | M12 | 105 | 5 | 4 | 80 | 11 | 12.5 |
