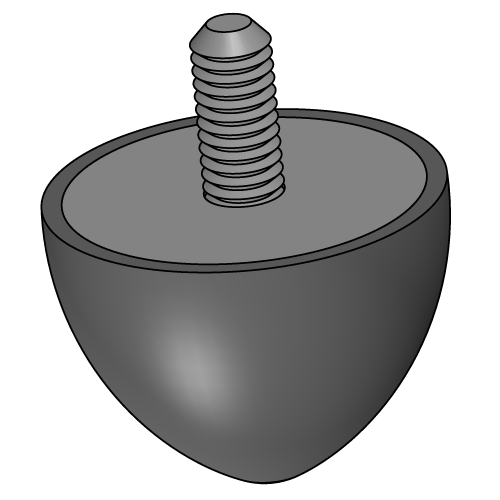

Male Conical Buffers
DESCRIPTION
Male Conical Buffers are ideal for absorbing shock & impact. These buffers give high levels of deformation under impact / load, and provide a progressive stiffness rate to absorb energy and protect equipment. These can be produced in stainless steel metals and various polymer types. Also available with Female Fixings.
APPLICATIONS
• Primary & secondary suspension for vehicles
• Bump stops for general industrial machinery
• Assister springs
• Rubber shock absorbers
Material
Natural Rubber (NR)

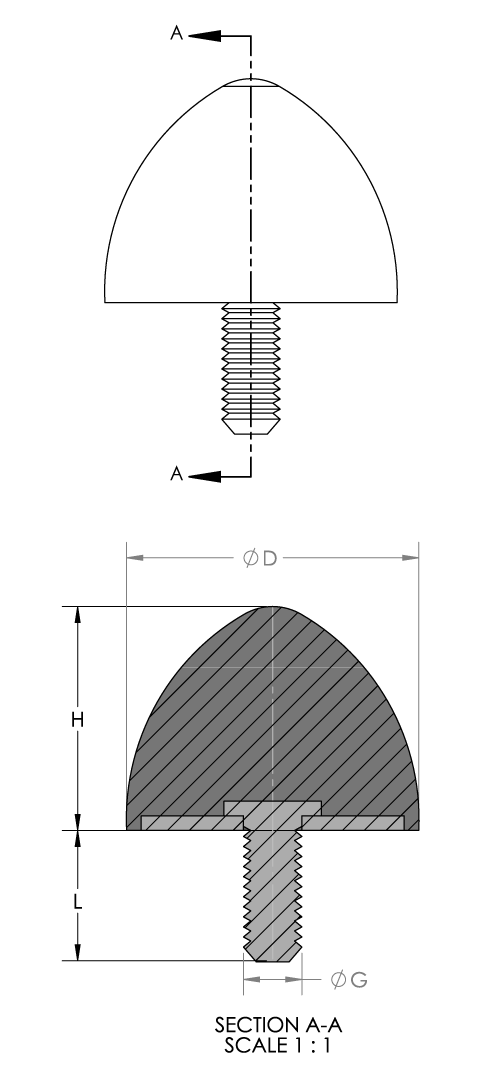

H= Height
L = Thread Length
D= Diameter
G = Thread Size
DIMENSIONS
| Article No. | H (mm) | L (mm) | D (mm) | G | MAX LOAD (KG) |
| BCBM2015M6 | 15 | 12 | 20 | M6 | 35 |
| BCBM2020M6 | 20 | 18 | 20 | M6 | 40 |
| BCBM2024M6 | 24 | 18 | 20 | M6 | 45 |
| BCBM2520M8 | 20 | 18 | 25 | M8 | 52 |
| BCBM2520M8 | 20 | 20 | 25 | M8 | 52 |
| BCBM3030M6 | 30 | 17 | 30 | M6 | 56 |
| BCBM3030M8 | 30 | 20 | 30 | M8 | 56 |
| BCBM3036M8 | 36 | 20 | 30 | M8 | 63 |
| BCBM3224M8 | 24 | 20 | 32 | M8 | 60 |
| BCBM3540M8 | 40 | 25 | 35 | M8 | 84 |
| BCBM5048M10 | 48 | 25 | 50 | M10 | 184 |
| BCBM5058M10 | 58 | 28 | 50 | M10 | 190 |
| BCBM5061M10 | 61 | 28 | 50 | M10 | 230 |
| BCBM5068M10 | 68 | 28 | 50 | M10 | 260 |
| BCBM7058M12 | 58 | 37 | 70 | M12 | 370 |
| BCBM7060M12 | 60 | 35 | 70 | M12 | 374 |
| BCBM7589M12 | 89 | 37 | 75 | M12 | 450 |
| BCBM9074M16 | 74 | 45 | 90 | M16 | 680 |
| BCBM9580M16 | 80 | 45 | 95 | M16 | 820 |
| BCBM108120M12 | 120 | 30 | 108 | M12 | 2800 |
| BCBM10895M12 | 95 | 30 | 108 | M12 | 1800 |
