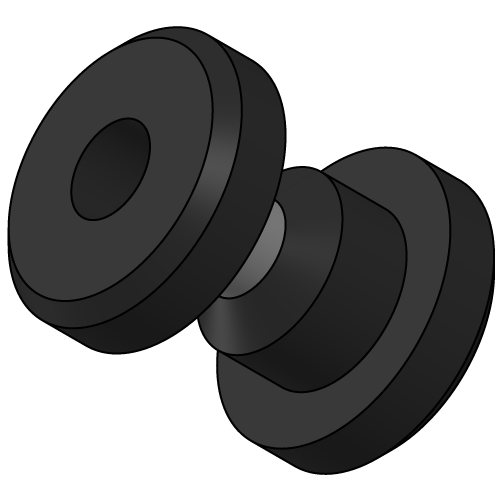

Double Shear Bush
DESCRIPTION
The two-piece Mountings are an ideal product for both mobile & static applications for reducing vibration, allowing flexibility within a system and are used for reducing stresses on brackets, etc. Using washers ensures a failsafe mounting system arrangement.
APPLICATIONS
• Construction Equipment,
• Power Generation
• Military Vehicles
• Off Road & Agricultural
• Industrial Machinery & Equipment
Material
Natural Rubber (NR)
A = Thickness Of Rubber Washer
B = Thickness Of Rubber Bush
C = Height Of Rubber Washer Insert
D = Height Of Rubber Bush
E = Collar Thickness
F = Inner Diameter Of Rubber Bush
G = Outer Diameter Of Rubber Washer
DIMENSIONS
| Article No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | Q (mm) | T (max) | T (max) | R |
| BDSB30 | 12 | 20 | 10 | 9 | 12 | 10 | 33 | 20 | 9.5 | 9.5 | 1 |
| BDSB50 | 20 | 31 | 19 | 10 | 20 | 14 | 47.5 | 31 | 14 | 13 | 2 |
| BDSB65 | 23 | 40 | 24 | 15 | 23 | 17 | 64 | 39 | 22 | 19 | 3 |
| BDSB90 | 25 | 58 | 27 | 22 | 25 | 24 | 89 | 57 | 28.6 | 25 | 3 |
Article No. | 45 ShA | 60 ShA | ||
| Maximum Load (KG) | Static Deflection (MM) | Maximum Load (KG) | Static Deflection (MM) | |
| BDSB30 | 40 | 2 | 70 | 2.5 |
| BDSB50 | 75 | 3.7 | 125 | 3.5 |
| BDSB65 | 115 | 4 | 250 | 4 |
| BDSB90 | 250 | 7 | 440 | 6 |
