ANTI VIBRATION CYLINDRICAL MOUNTS
description
They are designed not to cause any damage to vehicles. KerbStopper Buffers give the drivers a clear warning that their rear wheels are parked correctly. They are supplied with Pre-drilled holes for concrete or asphalt installations.
description
AV MOUNTS RANGE

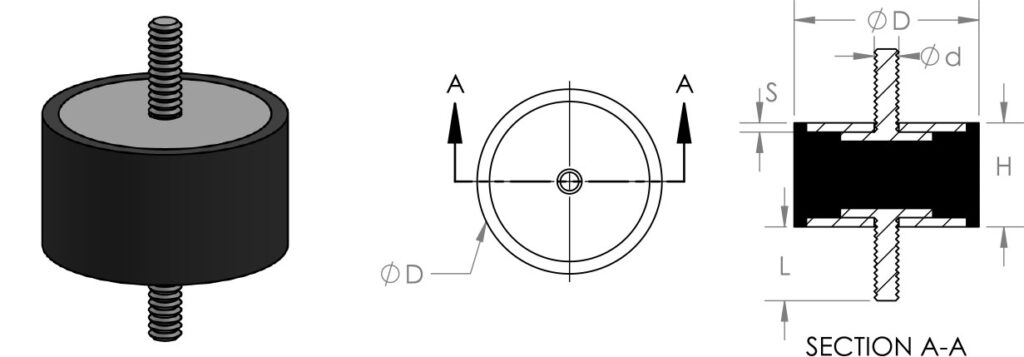

• TYPE A -Male/Male

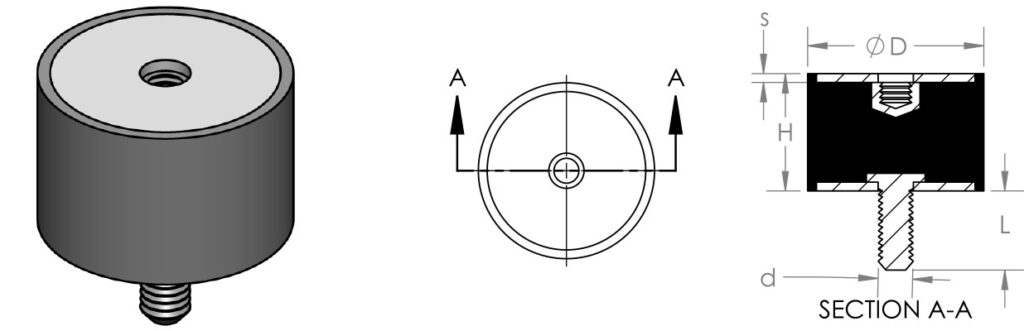

• TYPE B -Male/Female
• TYPE C -Female/Female
• TYPE D -Male
• TYPE E- Female
APPLICATIONS
• Exhaust Systems
• Small Fans
• Instrument Panels.
• HVAC
• Motors
• Electronic Control
• Panels
Material
Natural Rubber (NR)
TYPE B

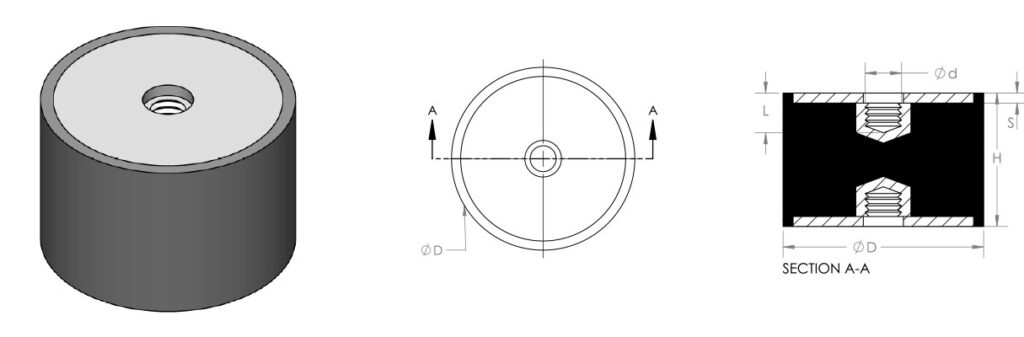

TYPE C

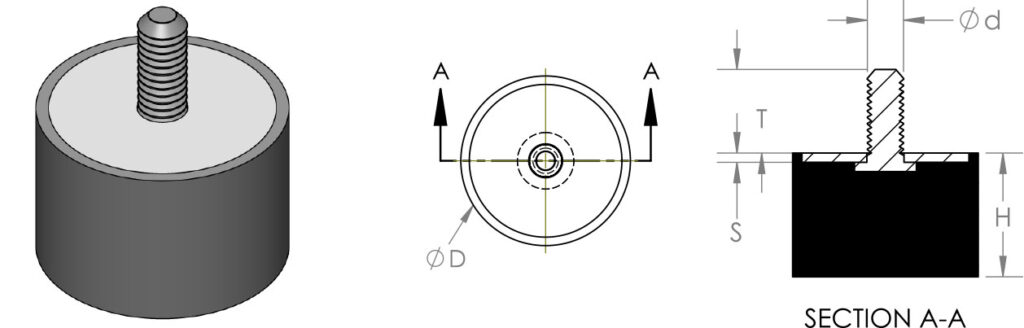

TYPE D

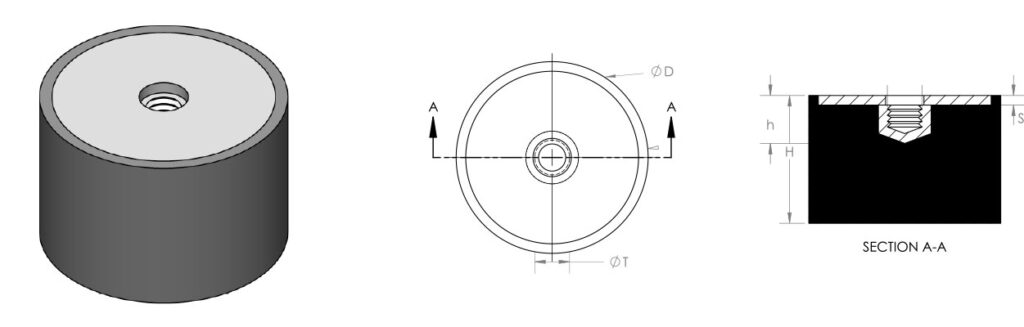

TYPE E

H = Height
L = Thread Length
D1 = Mount Diameter
D2 = Mount Center Diameter
G =Thread Size
S = Metal Thickness
DIMENSIONS
Size / part No. (D x H) (mm) | ShA. | Max Compressive Load (kg) | Static Deflection (mm) | Thread size | |
BOLT | NUT | ||||
BC 20 | 30 | 6 | 3 | M6 X 1G X 17L | M6 X 1G X 6 DEEP (B) |
40 | 8 | 3 | |||
50 | 11 | 3 | |||
60 | 18 | 4 | |||
70 | 21 | 3 | |||
BC 25 x 20 | 30 | 30 | 3.5 | M6 x 1G x 13L | M6 x 1G x 6 DEEP (B) |
40 | 45 | 3.5 | |||
50 | 60 | 3.5 | |||
BC 25 x 22 | 30 | 50 | 3.5 | M8 x 1.25G x 20L | M8 x 1.25G x 6 DEEP (B) |
BC 25 x 30 | 30 | 37 | 3 | M8 x 1.25G x 20L | M8 x 1.25G x 6 DEEP (B) |
40 | 52 | 3 | |||
50 | 73 | 3 | |||
BC 30 x 22 | 30 | 64 | 3.5 | M8 x 1.25G x 25L | M8 x 1.25G x 6 DEEP (B) |
BC 30 x 30 | 30 | 22 | 3 | M8 x 1.25G x 21L | M8 x 1.25G x 6 DEEP (B) |
BC 35 X 22 | 30 | 64 | 3 | 3/8” BSW x 38L | 3/8” BSW x 6 DEEP (B) |
BC 35 x 25 | 30 | 16 | 1.5 | 3/8” BSW x 38L | 3/8” BSW x 6 DEEP (B) |
40 | 21 | 1.5 | |||
50 | 40 | 1.5 | |||
60 | 65 | 1.5 | |||
BC 38 x 25 | 30 | 70 | 4 | M8 x 1.25G x 17L | M8 x 1.25G x 6 DEEP (B) |
40 | 110 | 4 | |||
50 | 175 | 4 | |||
BC 38 x 38 | 30 | 50 | 6 | M8 x 1.25G x 17L | M8 x 1.25G x 10 DEEP (B) |
40 | 67 | 6 | |||
50 | 85 | 6 | |||
BC 40 x 28 | 40 | 146 | 4.5 | M10 x 1.5G x 25L | M10 x 1.5G x 6 DEEP (B) |
BC 40 x 30 | 40 | 60 | 5 | M8 x 1.25G x 25L | M8 x 1.25G x 6 DEEP (B) |
BC 40 x 40 | 30 | 43 | 6 | M10 x 1.5G 38L | M10 x 1.5G x 10 DEEP (B) |
40 | 59 | 6 | |||
50 | 82 | 6 | |||
BC 50 x 19 B3 | – | 75 | 4 | M10 x 25 | – |
BC 50 x 40 | 30 | 65 | 5 | M10 X 1.5G X 22L | M10 X 1.5G X 12 DEEP (B) |
40 | 110 | 5 | |||
50 | 150 | 5 | |||
BC 50 x 45 | 30 | 106 | 7 | M10 x 1.5G X 25L | M10 x 1.5G x 12 DEEP (B) |
BC 50 x 50 | 30 | 76 | 7 | M10 X 1.5G X 22L | M10 X 1.5G X 12 DEEP (B) |
40 | 100 | 7 | |||
50 | 120 | 7 | |||
BC 55 x 38 | 30 | 58 | 3 | 3/8” BSW x 34L | 3/8” BSW x 10 DEEP (B) |
40 | 84 | 3 | |||
50 | 117 | 3 | |||
BC 60 x 45 | 30 | 214 | 8 | M10 x 1.5G X 19L | M10 x 1.5G x 10 DEEP (B) |
40 | 311 | 8 | |||
50 | 453 | 8 | |||
BC 60 x 50 | 30 | 110 | 6.5 | M12 x 1.75G x 27L | M12 x 1.75G x 15 DEEP (B) |
40 | 145 | 6.5 | |||
50 | 185 | 6.5 | |||
BC 60 x 60 | 30 | 110 | 8 | M12 x 1.75G x 30L | M12 x 1.75G x 20 DEEP (B) |
40 | 150 | 8 | |||
50 | 200 | 8 | |||
BC 63 x 36 | 30 | 115 | 5 | 1/2” BSW x 33L | 1/2” BSW x 10 DEEP (B) |
BC 75 x 25 B3 | 30 | 100 | 3 | M12 x 47 | – |
BC 75 x 55 | 30 | 158 | 6 | M8 x 1.75G x 37L | M12 x 1.75G x 15 DEEP (B) |
40 | 180 | 6 | |||
50 | 290 | 6 | |||
BC 100 x 55 | 30 | 320 | 6 | M16 x 2G x 43L | M16 x 2G x 20 DEEP (B) |
BC 100 x 75 | 30 | 280 | 10 | M12 x 1.75G x 30L | M12 x 1.75G x 20 DEEP (B) |
40 | 390 | 10 | |||
50 | 520 | 10 | |||
BC 100 x 90 | 30 | 285 | 12 | M12 x 1.75G x 30L | M12 x 1.75G x 20 DEEP (B) |
40 | 400 | 12 | |||
50 | 540 | 12 |
