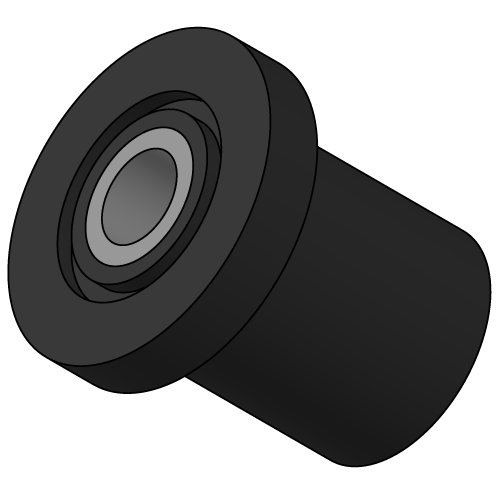

Center Bonded Rubber Bush
DESCRIPTION
They are simple and low-cost fail-safe mounts. They are made of natural rubber compound standard but can also be supplied in CR, NBR or EPDM.
APPLICATIONS
• Vehicle cabs
• Engines
• Compressors
• Pumps
• Air conditioning units
• Engine exhaust mounts (in high temperature rubber compound)
Material
Natural Rubber (NR)

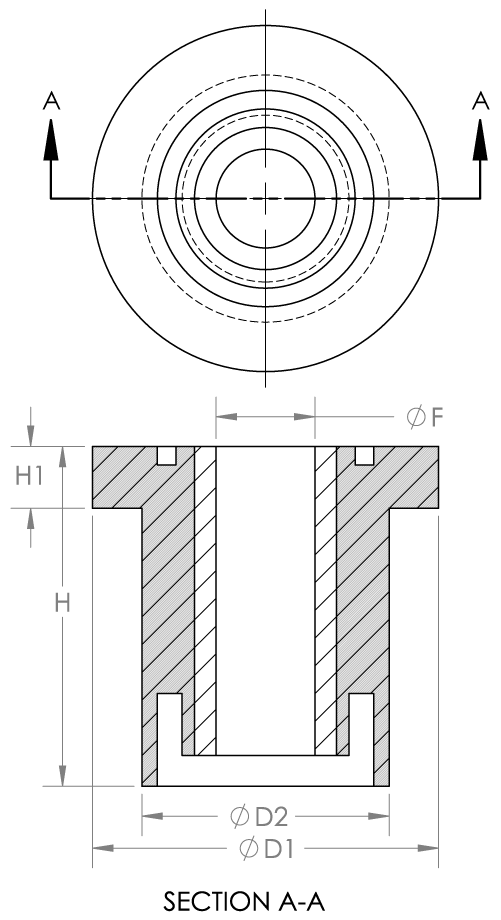

H= Height
D = Diameter
F= Inner Diameter
DIMENSIONS
| Article No. | H1(mm) | H2 (mm) | D1 (mm) | D2(mm) | F (mm) | Max Axial (kg) | Max. Deflection (mm) |
| BCBB2818 | 17.5 | 5.6 | 27.7 | 20.1 | 10 | 56 | 0.64 |
| BCBB4525 | 25.4 | 10.4 | 44.5 | 31.5 | 13 | 155 | 1.02 |
| BCBB5133 | 35 | 13.5 | 50.8 | 34.3 | 13 | 211 | 1.52 |
| BCBB6423 | 23 | 16 | 64 | 38 | 16 | 334 | 1.62 |
| BCBB6445 | 44.5 | 15.7 | 63.5 | 41.1 | 16 | 334 | 1.62 |
| BCBB9551 | 50.8 | 25.4 | 95 | 56 | 20 | 395 | 1.7 |
