Cab Mounts

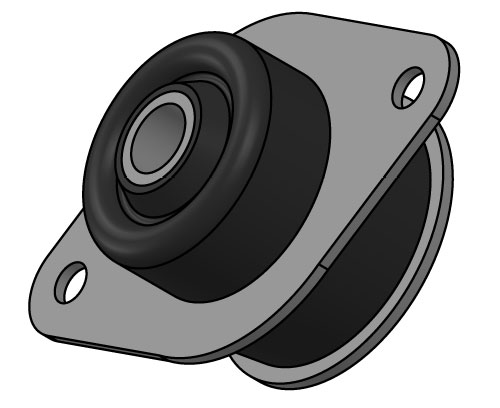

type A

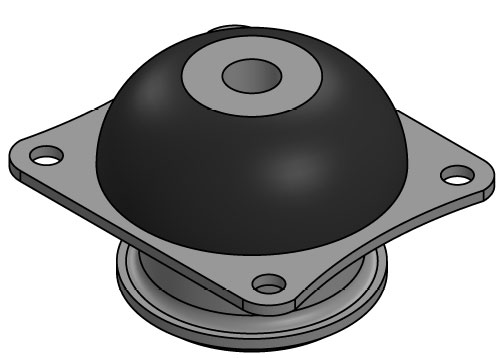

type B
DESCRIPTION
The CAB mounts are designed for use on heavy machinery and plant equipment. We have two types available, one with a single flange and the other with a double flange is to increase assembly strength.
APPLICATIONS
• Lorry or tractor cabs
• Engine & transmission
• Mobile generators
Material
Natural Rubber (NR)
type A
type B

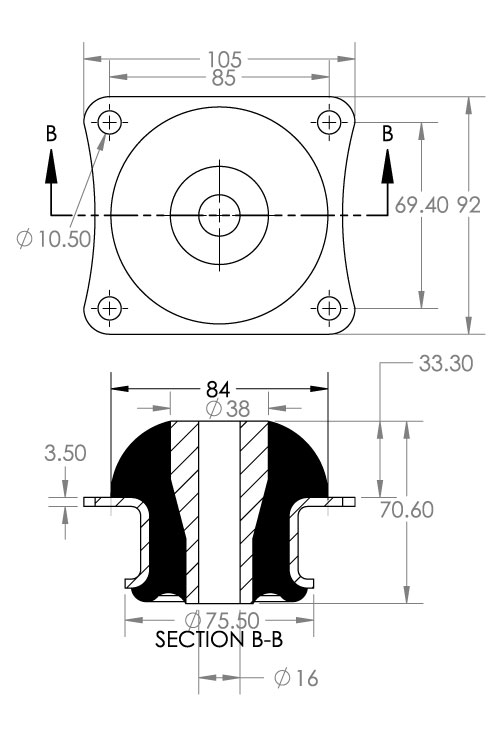

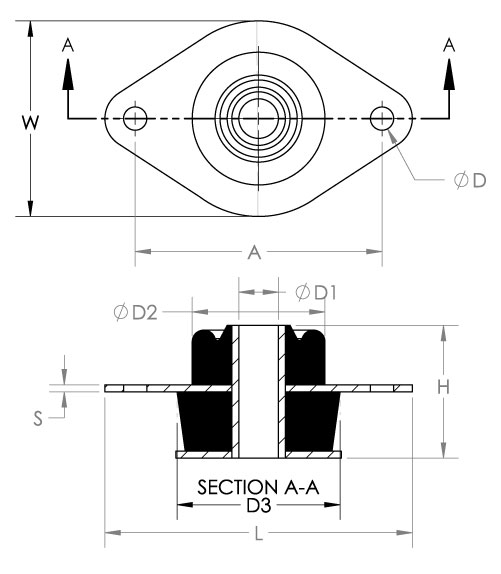

H = Total Height
L = Length
D = Hole Diameter
D1 = Center Hole Diameter
D2 = Total Diameter
D3 = Bottom Diameter
A = Hole Distance
S = Metal Thickness
DIMENSIONS
| Article No. | H (mm) | H1 (mm) | L (mm) | D (mm) | D1 (mm) | D2 (mm) | D3 (mm) | A (mm) | S (mm) |
| BCBM1 | 45 | 28 | 114 | 10.3 | 11.6 | 48 | 53 | 89 | 3 |
| BCBM2 | 57 | 30 | 133.3 | 10.3 | 17.5 | 70 | 57 | 108 | 3 |
| BCBM3 | 85.4 | 44.2 | 158 | 10.5 | 19.3 | 80.8 | 64.8 | 127 | 4 |
| Article No. | ShA. | Max Load Axial (kg) |
Static Deflection (mm)
|
|
BCBM1 |
30 | 91 | 4.6 |
| 40 | 114 | 4.6 | |
| 50 | 159 | 4.8 | |
| 60 | 182 | 4.6 | |
| 70 | 227 | 4.8 | |
|
BCBM2 |
30 | 364 | 5.1 |
| 40 | 364 | 4.6 | |
| 50 | 455 | 4.6 | |
| 60 | 545 | 4.6 | |
| 70 | 636 | 4.6 | |
|
BCBM3 |
30 | 192 | 11.5 |
| 40 | 312 | 6.9 | |
|
BCBM4 |
30 | 250 | 6 |
| 40 | 500 | 6 | |
| 50 | 600 | 4.8 | |
|
BCBM5 |
30 | 200 | 6.5 |
| 40 | 350 | 5.4 | |
| 50 | 500 | 5.3 | |
|
BCBM6 |
30 | 200 | 6.5 |
| 40 | 350 | 5.4 | |
| 50 | 500 | 5.3 | |
|
BCBM7 |
30 | 780 | 6.8 |
| 40 | 200 | 5.5 | |
| 50 | 250 | 4.7 |
