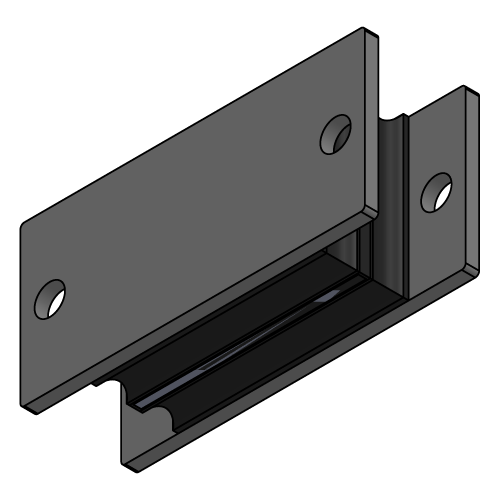

Anti Vibration Sandwich Mount

DESCRIPTION
Sandwich Mounts can be loaded in compression, shear or a combination of both by fitting at an angle.
APPLICATIONS
• Engine mountings
• Generator sets
• Heavy plant & machinery
Material
Natural Rubber (NR)

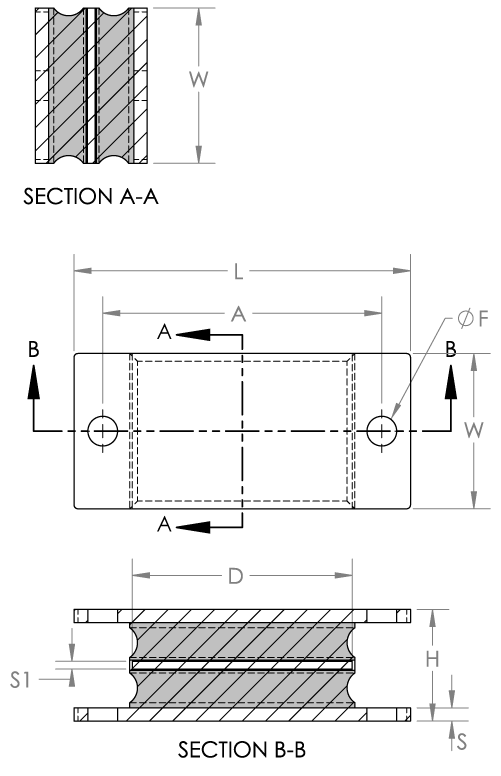

H= Height
L = Length
D= Diameter
A= Hole Distance
W = Flange Width
F= Flange hole dia
S= Metal Thickness
DIMENSIONS
Article No.. | H (mm) | L (mm) | D (mm) | A (mm) | W (mm) | F (mm) | S (mm) | Maximum Load (kg) |
Static Deflection (m)
|
BSM406-45 | 36 | 90 | 54 | 74.5 | 40 | 6.8 | 3.5 | 95 | 2.8 |
BSM406-50 | 135 | 2.8 | |||||||
BSM406-60 | 200 | 2.8 | |||||||
BSM406-70 | 310 | 2.8 | |||||||
BSM322-45 | 43 | 110 | 64 | 89 | 57 | 11 | 5 | 190 | 3 |
BSM322-60 | 375 | 3 | |||||||
BSM322-70 | 500 | 2.6 | |||||||
BSM284-45 | 43 | 127 | 84 | 108 | 57 | 11 | 5 | 300 | 3 |
BSM284-60 | 600 | 3 | |||||||
BSM284-70 | 800 | 2.6 | |||||||
BSM242-45 | 43 | 168 | 127 | 146 | 57 | 11 | 5 | 450 | 3 |
BSM242-60 | 850 | 2.8 | |||||||
BSM242-70 | 1000 | 2.2 | |||||||
BSM30242-45 | 31 | 166 | 119 | 146 | 55 | 11 | 5 | 180 | 2.1 |
BSM30242-60 | 360 | 2.1 | |||||||
BSM30242-70 | 530 | 2.1 |
