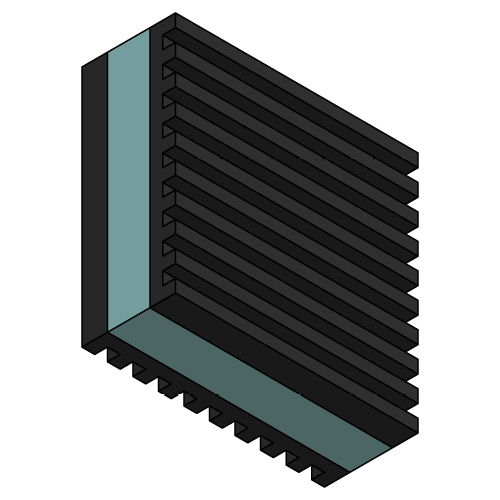

ANTI VIBRATION RUBBER PAD
DESCRIPTION
They have an alternate high low ribbed construction and are easy to cut pads. These pads can be cut to be slightly larger than the size of the leg or machine, using shears or knife. They are easy to install. The multiple layers of ribbed mounting pad can also be used to increase deflection.
APPLICATIONS
• Marine propulsion engines
• Generator sets
• Diesel engines, Vehicles
• Pumps and Compressors.
• Also for other very corrosive environments such as offshore agricultural and coastal applications.
Material
Natural Rubber (NR)
L= Length
W= Width
H= Height
DIMENSIONS
| Model Nos. | Size in inches | Rec.Load | Max.Load in Kgs. |
| BPF18 | 3\8” x 18” x 18” | 410 | 480 |
| BPF12 | 3\8” x 12” x 12” | 275 | 310 |
| BPF08 | 3\8” x 8” x 8” | 180 | 205 |
| BPF06 | 3\8” x 6” x 6” | 135 | 150 |
| BPF04 | 3\8” x 4” x 4” | 90 | 105 |
| BPF03 | 3\8” x 3” x 3” | 65 | 75 |
