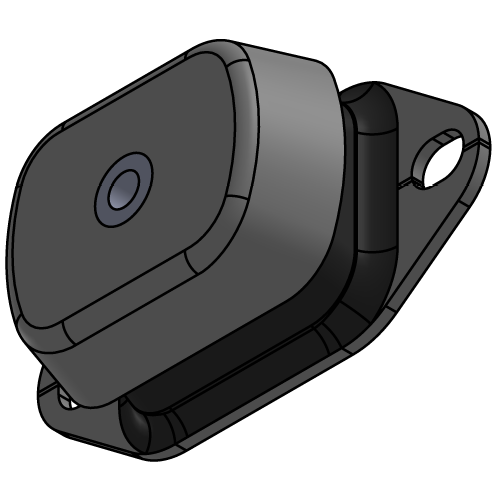

Anti Vibration Marine Mounts
DESCRIPTION
Marine mounts were originally designed for use with marine propulsion engines and therefore fail-safe to accommodate thrust. The mounts provide different stiffness’ in each direction, which provides optimum performance, particularly for IC engines.
APPLICATIONS
• Marine propulsion engines
• Generator sets
• Diesel engines, Vehicles
• Pumps and Compressors.
• Also for other very corrosive environments such as offshore agricultural and coastal applications.
Material
Natural Rubber (NR)

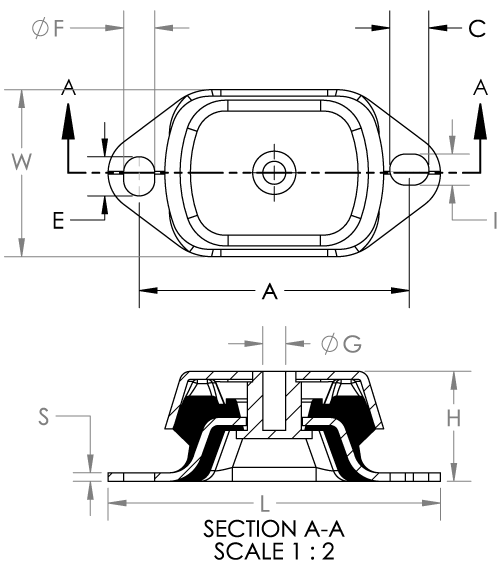

H= Total Height L= Flange Length G= Thread Size A= Hole Distance C/E = Hole Length F/I = Hole Width W= Flange Width S = Metal Thickness K= Hole Depth
DIMENSIONS
| Article No. | H (mm) | L (mm) | G (mm) | A (mm) | C (mm) | E (mm) | F (mm) | I (mm) | W (mm) | S (mm) | K (mm) |
| BMR 140 | 49 | 178 | M16 | 140 | 20 | 30 | 13 | 13 | 76 | 6.5 | 25 |
| BMR 182 | 70 | 220 | M20 | 182 | 26 | 34 | 18 | 18 | 112 | 9 | 28 |
| Article No. | ShA | Load (kg) | Deflection (mm) |
| BMR 100 | 30 | 50 |
4 |
|
BMR 110 |
40 | 70 | |
| 50 | 100 | ||
|
BMR 140 |
30 | 135 |
5 |
| 40 | 200 | ||
| 50 | 300 | ||
|
BMR 182 |
30 | 355 |
5 |
| 40 | 530 | ||
| 50 | 800 | ||
| 60 | 1000 |
