Anti Vibration Foot Mounts

DESCRIPTION
Machinery Leveling Foot Mounts are suitable for isolating vibration from heavy machinery and also acts as a leveling device for uneven flooring.
APPLICATIONS
• Machine ToolS
• Lathes
• Presses
• Heavy Industrial Equipment
• Conveyors
• Food Processing & Pharmaceutical equipment
• Generator Sets.
Material
Natural Rubber (NR)

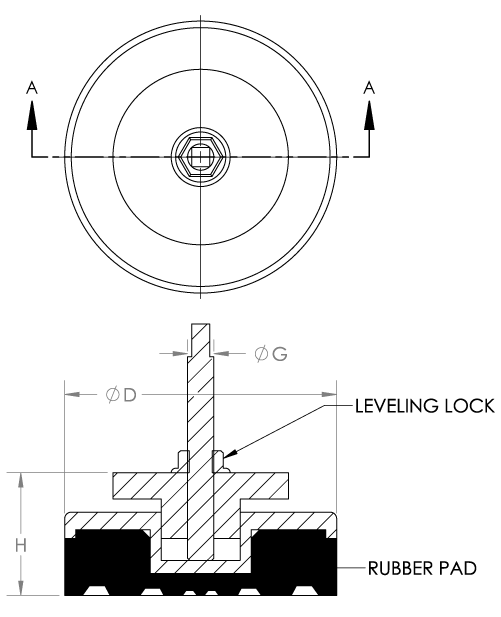

H = Height
D = Diameter
G = Thread Size
DIMENSIONS
Article No. | H (mm) | D (mm) | Adjustable Level | G | Load Capacity |
BFM 100 | 22 | 40 | Nil | M10 | 50-100 |
BFM 200 | 42 | 50 | 50 | M10 | 100-200 |
BFM 400 | 42 | 85 | 50 | M10/12 | 200-400 |
BFM 600 | 50 | 105 | 60 | M12/16 | 400-600 |
BFM 800 | 50 | 125 | 60 | M12/16 | 600-800 |
BFM 1000 | 56 | 145 | 68 | M16/20 | 700-1100 |
BFM 1200 | 56 | 165 | 68 | M16/20 | 900-1400 |
BFM 1600 | 68 | 185 | 80 | M16/20 | 1200-1800 |
BFM 2000 | 68 | 200 | 80 | M16/20/24 | 1600-2000 |
