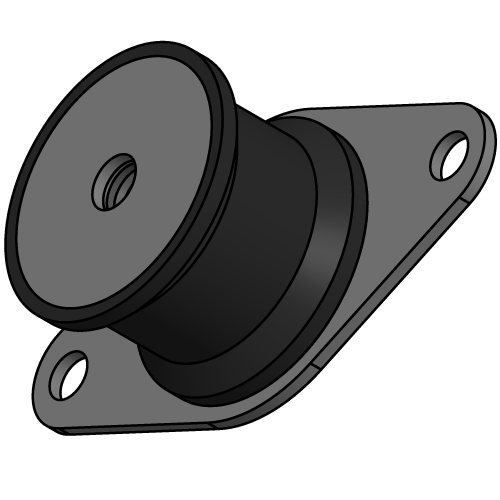

Anti Vibration Flange Mount - Female
DESCRIPTION
Flange Mountings are a simple, low cost, compression mounting, providing good levels of vibration reduction. The mountings are produced with & without an inter-leaf metal. The inter-leaf metal provides increased load capacity.
APPLICATIONS
• Generating Sets
• Pumps
• Fans
• Compressors
• Vibratory Screens
• Processing Equipment etc.
Material
Natural Rubber (NR)

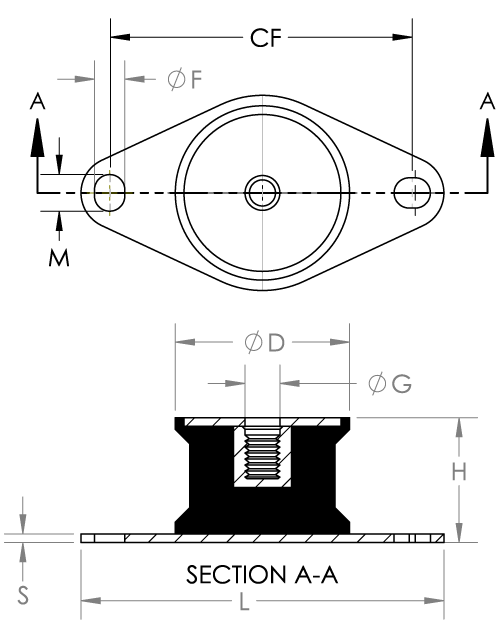

H= Height
L= Flange Length
D= Diameter
G = Thread Size/ Nut Size
CF= Hole Distance
S= Metal Thickness
M/F= Hole Diameter
DIMENSIONS
| Article No. | H (mm) | L (mm) | D (mm) | CF (mm) | G | S (mm) | F (mm) | M (mm) | Min Load (daN) | Max Load (daN) |
| BPM 5 F | 48 | 144 | 88 | 112 | M12 | 3 | 11 | 11 | 70 | 700 |
| BPM 6 F | 64 | 215 | 124 | 180 | M20 | 4 | 23 | 18 | 150 | 2000 |
