BAR FENDER
DESCRIPTION
All Fender Bars can resist high impacts and are suitable for a wide range of general purpose applications.
APPLICATIONS
Their applications are everything from ferry berths to bumpers on barges. The vulcanized internal steel plate provides very strong fixing points and reduces bending moments in the bolts.

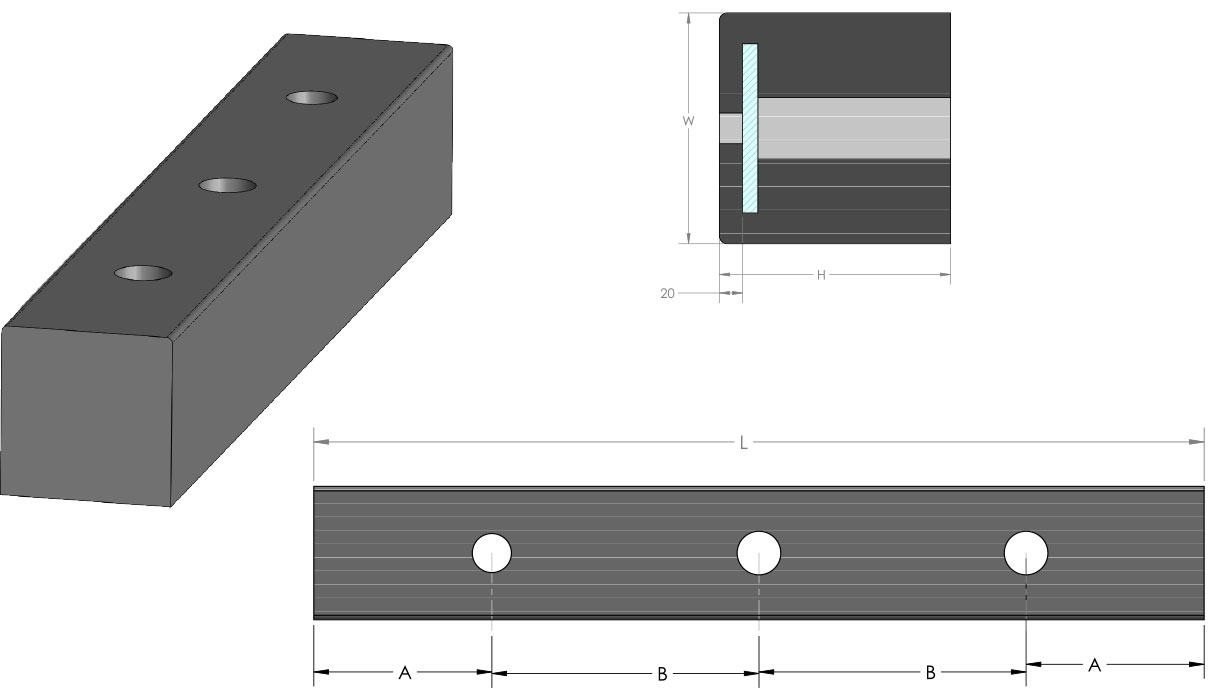

DIMENSIONS
| W | H | L | A | B | Anchors |
| 150 | 150 | 1000 | 250 | 500 | 2 x M24 |
| 150 | 150 | 1500 | 250 | 500 | 3 x M24 |
| 150 | 200 | 1000 | 250 | 500 | 2 x M24 |
| 150 | 200 | 1500 | 250 | 500 | 3 x M24 |
| 200 | 200 | 1000 | 250 | 500 | 2 x M30 |
| 200 | 200 | 1500 | 250 | 500 | 3 x M30 |
| 200 | 250 | 1000 | 250 | 500 | 2 x M30 |
| 200 | 250 | 1500 | 250 | 500 | 3 x M30 |
| 200 | 300 | 1000 | 250 | 500 | 2 x M30 |
| 200 | 300 | 1500 | 250 | 500 | 3 x M30 |
The above table covers our standard sizes only.
However we can design and build to suit customer’s individual requirements.
All Dimensions in mm. Overall Dimensional Tolerances 35%
