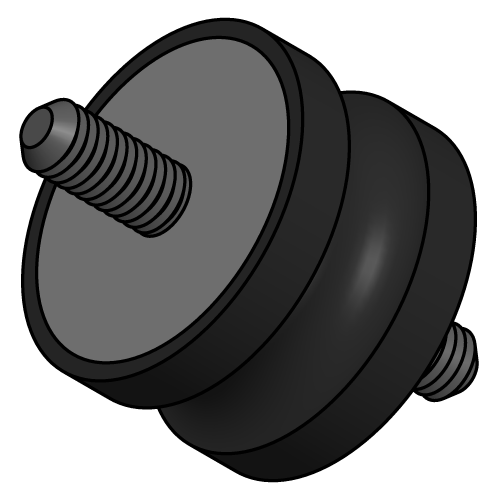

Waisted O Mounts

DESCRIPTION

Waisted ‘O’ Mounts offer low shear stiffness properties and are available with various thread configurations.

APPLICATIONS

• Lightweight equipment

• Vibratory feeder

• Electric motors

• Control panels

Material

Natural Rubber

Chloroprene Rubber

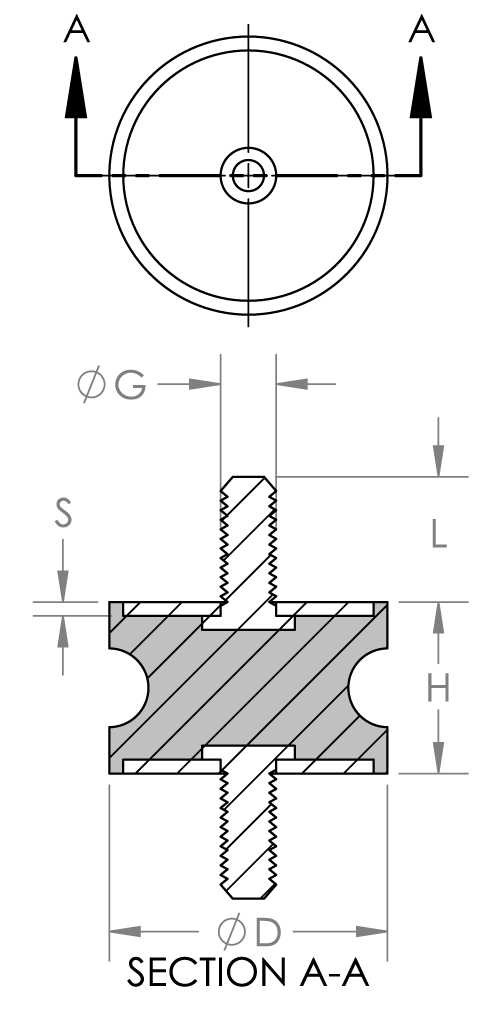

H= Height

L = Thread Length

D= Diameter

G = Thread Size

These mounts are also availble in Male\Female and Female\Female fittings.

DIMENSIONS

Article No..	H (mm)	D (mm)	G x L	50SHA Compression (kg)	50SHA Shear (kg)	60SHA Compression (kg)	60ShA Shear (kg)
BWM1010M4	10	10	M4 X 10	1.5	0.36	2.34	0.56
BWM1214M4	14	12	M4 X 10	6.3	1.8	9.4	3.3
BWM1515M4	15	15	M4 X 10	5.6	1.5	8.74	2.34
BWM2015M6	15	20	M6 X 18	10	2.5	15.6	3.9
BWM2018M6	18	20	M6 X 18	9	2.1	14	3.2
BWM2020M6	20	20	M6 X 18	8	1.9	12.5	3
BWM2030M6	30	20	M6 X 18	6	1.5	9	2.3
BWM2520M6	20	25	M6 X 18	14	3.4	22	5.3
BWM2525M6	25	25	M6 X 20	12	3	19	4.5
BWM3020M8	20	30	M8 X 20	17	4.2	26	6.5
BWM3025M8	25	30	M8 X 20	13	3	20	4.7
BWM3838M10	38	38	M10 X 25	23	5.6	36	8.7
BWM4030M8	30	40	M8 X 23	26	6.3	40	9.8
BWM4048M8	48	40	M8 X 23	24	5.6	38	8.7
BWM4625M10	25	46	M10 X 28	53	13	82	20
BWM5030M10	30	50	M10 X 28	48	12	75	18
BWM5545M10	45	55	M10 X 28	42	10.5	65	16
BWM5744M10	44	57	M10 X 28	64	16	98	25
BWM5745M10	45	57	M10 X 28	58	14	90	22
BWM6036M10	36	60	M10 X 30	76	18	118	28
BWM6060M10	60	60	M10 X 28	58	14	91	23
BWM7053M12	53	70	M12 X 41	106	26	165	40
BWM8065M14	65	80	M14 X 35	183	45	285	70
BWM9077M16	77	90	M16 X 45	218	53	340	83
BWM9575M16	75	95	M16 X 41	240	58	374	90
BWM13096M16	96	130	M16 X 45	320	78	499	122
BWM18075M20	75	180	M20 X 45	486	118	758	184
