ANTI-VIBRATION
Rubber Metal Rails

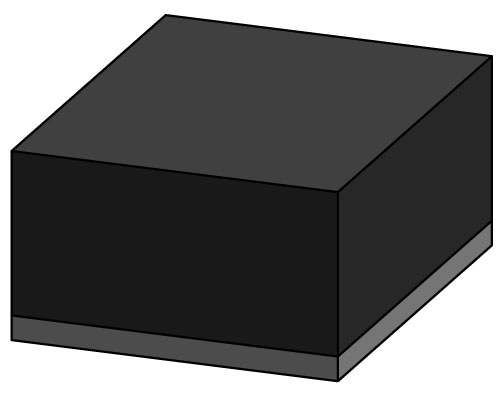

type a

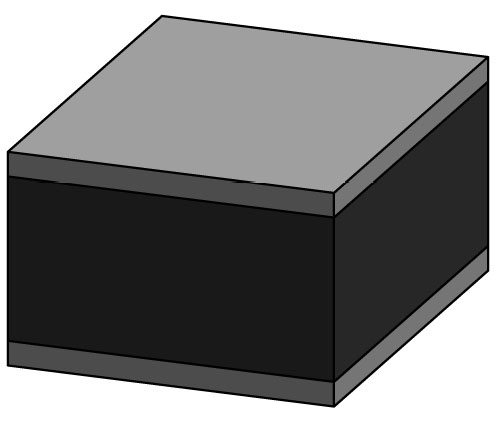

type b
DESCRIPTION
The standard rails are made in natural rubber vulcanized to 1 or 2 steel rails. The rails can are made in 3 hardnesses:
• 45 Sh.
• 55 Sh.
• 65 Sh.
Rubber rails are suited for the isolation of heavy equipment.
Rubber rails can be cut to any size, the isolation of foundations, lathe machines, mills, punching machines or any other suitable application can be individually designed.
In addition to being able to tailor the length of the rail, holes can also be drilled and threads cut easily into this highly adaptable range of mounts.
Material
Natural Rubber (NR)
type a
type b

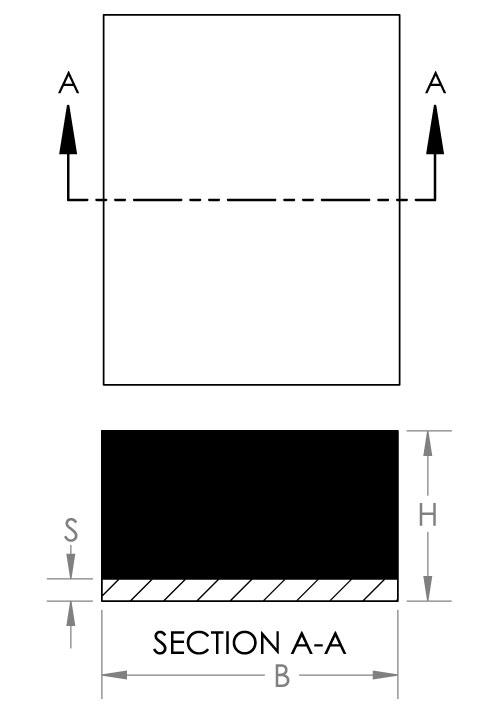

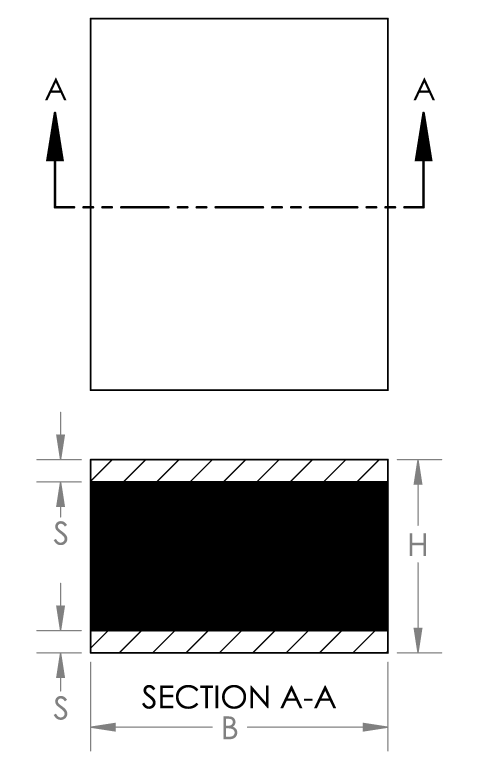

H = Total Height
B = Total Length
S = Metal Thickness
DIMENSIONS
TYPE 1
| Article No. | B (mm) | H (mm) | L (mm) | S (mm) |
| BRMS2525 | 25 | 25 | 1500 | 5-10 |
| BRMS2530 | 25 | 30 | 1500 | 5-10 |
| BRMS3030 | 30 | 30 | 1500 | 5-10 |
| BRMS4020 | 40 | 20 | 1500 | 5-10 |
| BRMS4035 | 40 | 35 | 1500 | 5-10 |
| BRMS4045 | 40 | 45 | 1500 | 5-10 |
| BRMS5035 | 50 | 35 | 1500 | 5-10 |
| BRMS5040 | 50 | 40 | 1500 | 5-10 |
| BRMS5045 | 50 | 45 | 1500 | 5-10 |
| BRMS5050 | 50 | 50 | 1500 | 5-10 |
| BRMS5055 | 50 | 55 | 1500 | 5-10 |
| BRMS6030 | 60 | 30 | 1500 | 5-10 |
| BRMS6035 | 60 | 35 | 1500 | 5-10 |
| BRMS6050 | 60 | 50 | 1500 | 5-10 |
| BRMS6060 | 60 | 60 | 1500 | 5-10 |
| BRMS6080 | 60 | 80 | 1500 | 5-10 |
| BRMS7030 | 70 | 30 | 1500 | 5-10 |
| BRMS7045 | 70 | 45 | 1500 | 5-10 |
| BRMS7050 | 70 | 50 | 1500 | 5-10 |
| BRMS7060 | 70 | 60 | 1500 | 5-10 |
| BRMS8045 | 80 | 45 | 1500 | 5-10 |
| BRMS8060 | 80 | 60 | 1500 | 5-10 |
| BRMS8080 | 80 | 80 | 1500 | 5-15 |
| BRMS10045 | 100 | 45 | 1500 | 10-15 |
| BRMS10055 | 100 | 55 | 1500 | 10-15 |
| BRMS10060 | 100 | 60 | 1500 | 10-15 |
| BRMS10080 | 100 | 80 | 1500 | 5-15 |
| BRMS12045 | 120 | 45 | 1500 | 10-15 |
| BRMS12060 | 120 | 60 | 1500 | 10-15 |
| BRMS12080 | 120 | 80 | 1500 | 10-15 |
| BRMS15060 | 150 | 60 | 1500 | 10-15 |
| BRMS200100 | 200 | 100 | 1500 | 10-15 |
TYPE 2
| Article No. | B (mm) | H (mm) | L (mm) | S (mm) |
| BRMD2525 | 25 | 25 | 1500 | 5-10 |
| BRMD2530 | 25 | 30 | 1500 | 5-10 |
| BRMD3030 | 30 | 30 | 1500 | 5-10 |
| BRMD4020 | 40 | 20 | 1500 | 5-10 |
| BRMD4035 | 40 | 35 | 1500 | 5-10 |
| BRMD4045 | 40 | 45 | 1500 | 5-10 |
| BRMD5035 | 50 | 35 | 1500 | 5-10 |
| BRMD5040 | 50 | 40 | 1500 | 5-10 |
| BRMD5045 | 50 | 45 | 1500 | 5-10 |
| BRMD5050 | 50 | 50 | 1500 | 5-10 |
| BRMD5055 | 50 | 55 | 1500 | 5-10 |
| BRMD6030 | 60 | 30 | 1500 | 5-10 |
| BRMD6035 | 60 | 35 | 1500 | 5-15 |
| BRMD6050 | 60 | 50 | 1500 | 5-10 |
| BRMD6060 | 60 | 60 | 1500 | 5-10 |
| BRMD6080 | 60 | 80 | 1500 | 5-10 |
| BRMD7030 | 70 | 30 | 1500 | 5-10 |
| BRMD7045 | 70 | 45 | 1500 | 5-10 |
| BRMD7050 | 70 | 50 | 1500 | 5-10 |
| BRMD7060 | 70 | 60 | 1500 | 5-10 |
| BRMD8045 | 80 | 45 | 1500 | 5-10 |
| BRMD8060 | 80 | 60 | 1500 | 5-10 |
| BRMD8080 | 80 | 80 | 1500 | 5-15 |
| BRMD10045 | 100 | 45 | 1500 | 10-15 |
| BRMD10055 | 100 | 55 | 1500 | 10-15 |
| BRMD10060 | 100 | 60 | 1500 | 10-15 |
| BRMD10080 | 100 | 80 | 1500 | 5-15 |
| BRMD12045 | 120 | 45 | 1500 | 10-15 |
| BRMD12060 | 120 | 60 | 1500 | 10-15 |
| BRMD12080 | 120 | 80 | 1500 | 10-15 |
| BRMD15060 | 150 | 60 | 1500 | 10-15 |
| BRMD200100 | 200 | 100 | 1500 | 10-15 |
