PROFILE BOBBIN - MALE/FEMALE
DESCRIPTION
Profile Bobbin Mounts are ideal for applications where high dynamic forces are applied, particularly where applications require high Shear/Compression. The oversized end metals allows for an improved bonded interface between the rubber & metal, to increase the fatigue life when the parts are used for high dynamic applications.
.
APPLICATIONS
• Vibratory rollers.
• Sieves and Grading equipment.
• Industrial Machinery including diesel engines
Material
Natural Rubber (NR)

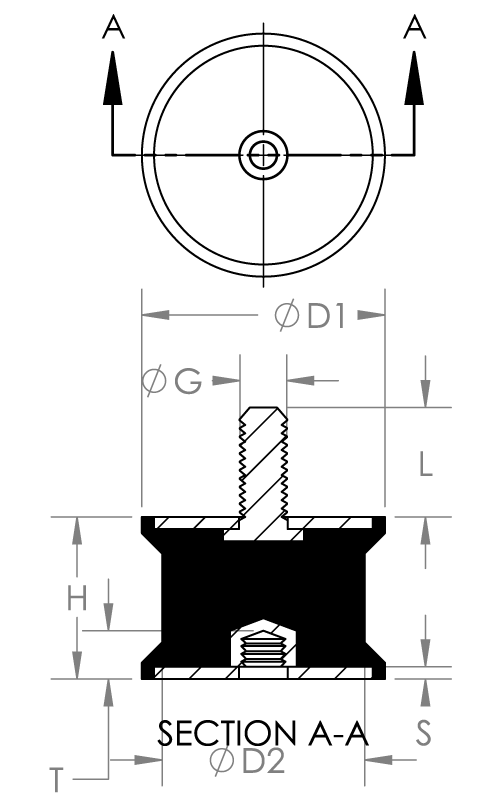

H = Height
L = Thread Length
D1 = Mount Diameter
D2 = Mount Center Diameter
G =Thread Size
T = Thread Depth
S = Metal Thickness
DIMENSIONS
| Article No. | H (mm) | L (mm) | D1 (mm) | D2 (mm) | G | T (mm) | S (mm) | Max Load 45 ShA (Kg) | Max Load 60 ShA (Kg) |
| BBMF2030 | 30 | 18 | 20 | 15 | M6 | 6 | 2 | 5.2 | 10.2 |
| BBMF2040 | 40 | 18 | 20 | 15 | M6 | 6 | 2 | 4 | 7.5 |
| BBMF2522 | 22 | 18 | 25 | 22 | M6 | 6 | 2 | 14 | 27 |
| BBMF4028 | 28 | 23 | 40 | 35 | M8 | 8 | 2 | 27 | 52 |
| BBMF4625 | 25 | 28 | 46 | 40 | M10 | 10 | 2 | 71 | 140 |
| BBMF5030 | 30 | 28 | 50 | 40 | M10 | 10 | 2 | 60 | 119 |
| BBMF7540 | 40 | 37 | 75 | 70 | M12 | 12 | 3 | 141 | 279 |
| BBMF10075 | 75 | 41 | 100 | 95 | M16 | 18 | 3 | 226 | 447 |
