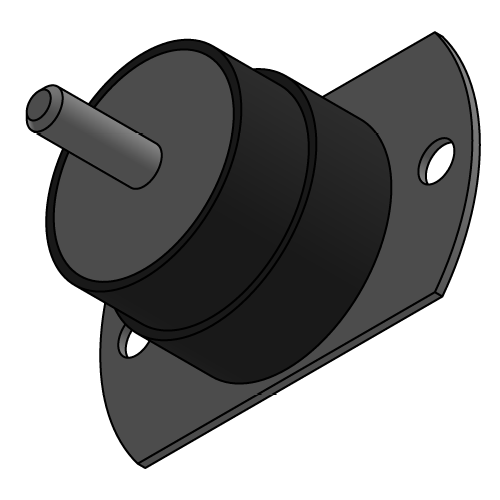

Plate Mount - Type 2
DESCRIPTION
The plate mount is a versatile compact and inexpensive flange type mount, typically used in diesel generators to achieve high shock damping under compression load. These mounts are classified on the basis of KVA.
APPLICATIONS
Diesel generators.
Material
Natural Rubber (NR)

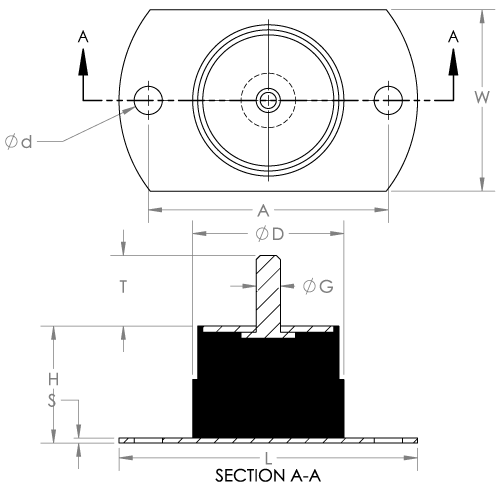

H = Total Height L = Total Length D = Diameter T = Thread Length A = Hole Distance S = Metal Thickness W = Width I = Thread Depth G = bolt size
DIMENSIONS
| Article No. | H (mm) | L (mm) | D (mm) | T (mm) | A (mm) | S (mm) | S2 (mm) | W (mm) | G (mm) | d (hole dia |
| BPLM270 | 48 | 124 | 70 | 35 | 100 | 3 | 2.5 | 75 | M12 | 12 |
| BPLM275 | 56 | 148 | 75 | 35 | 119 | 3 | 2.5 | 90 | M12 | 14 |
| BPLM2100 | 79 | 173 | 100 | 35 | 140 | 3 | 3 | 110 | M16 | 16 |
