WING-TYPE FENDER
DESCRIPTION
Wing-Type fenders offer the high energy absorption required for tugs, barges and other service vessels. Their cross sections are designed for solid mounting and complete coverage. Wing Type fenders are designed for vessel mounting. They combine the impressive energy absorption capabilities of a cylindrical design with the convenience of wing mounting. They are also used in pilot boats, heavy tugs, barges and ferries.

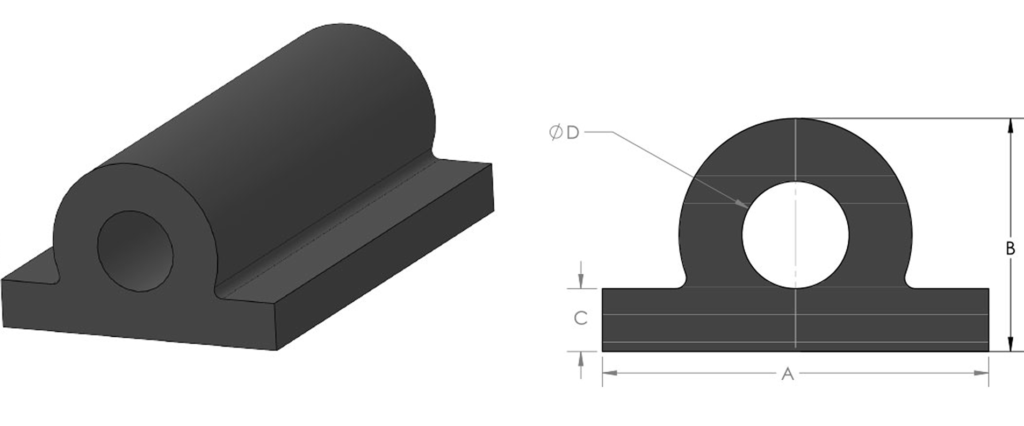

DIMENSIONS
A | B | C | D | Length |
120 | 65 | 15 | 25 | 2000 |
140 | 45 | 15 | 20 | 2000 |
160 | 100 | 25 | 50 | 2000 |
177 | 80 | 20 | 38 | 2000 |
180 | 100 | 25 | 50 | 2000 |
215 | 150 | 30 | 75 | 2000 |
245 | 150 | 30 | 75 | 2000 |
280 | 200 | 40 | 100 | 2000 |
320 | 200 | 40 | 100 | 2000 |
330 | 250 | 50 | 125 | 2000 |
350 | 200 | 40 | 100 | 2000 |
370 | 250 | 50 | 100 | 2000 |
410 | 250 | 50 | 100 | 2000 |
410 | 250 | 50 | 125 | 2000 |
The above table covers our standard sizes only.
However we can design and build to suit customer’s individual requirements.
All Dimensions in mm. Overall Dimensional Tolerances 35%
