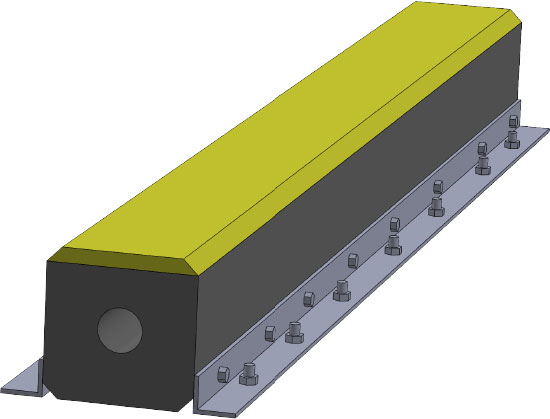

SQ-1 fender
UHMW-PE RUBBER FENDERS
DESCRIPTION
UHMW-PE – Rubber Fenders are manufactured using the latest molecular bonding technology to combine the energy absorbing qualities of a rubber fender with the low friction benefits of a polyethylene facing.
Key benefits
UHMW-PE face offers a low friction, hard wearing, durable contact facing; while the rubber elements are produced from marine quality compounds which are highly resistant to the effects of ozone degradation, UV radiation and water-borne oil pollution.
Applications
UHMW-PE – Rubber Fenders are ideal for most side fendering and guiding applications and any installation requiring a simple Extruded Fender with low shear forces. Because of its low friction capabilities there will be less wear in the fenders. They are ideal for mounting on quay structures where tidal conditions exist. It allows vessels to rise and fall with tide levels without damaging the fender or the vessel.

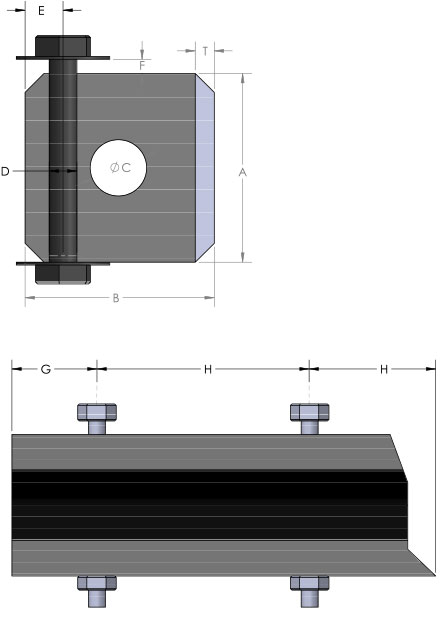

DIMENSIONS
| A | B | C | T | ØD | E | F | G | H | Flat Bar | Bolt Size | Length |
| 100 | 100 | 30 | 20 | 15 | 25 | 10 | 100 | 200 | 50×6 | M12 | 3000 |
| 150 | 150 | 65 | 20 | 20 | 30 | 12 | 100 | 200 | 60×8 | M16 | 3000 |
| 200 | 200 | 75 | 25 | 25 | 45 | 20 | 100 | 200 | 80×10 | M20 | 3000 |
| 250 | 250 | 100 | 30 | 30 | 50 | 25 | 100 | 200 | 100×10 | M24 | 3000 |
| 300 | 300 | 125 | 30 | 30 | 60 | 30 | 100 | 200 | 110×12 | M24 | 3000 |
The above table covers our standard sizes only.
However we can design and build to suit customer’s individual requirements.
All Dimensions in mm. Overall Dimensional Tolerances 35%
SQ-2 fender

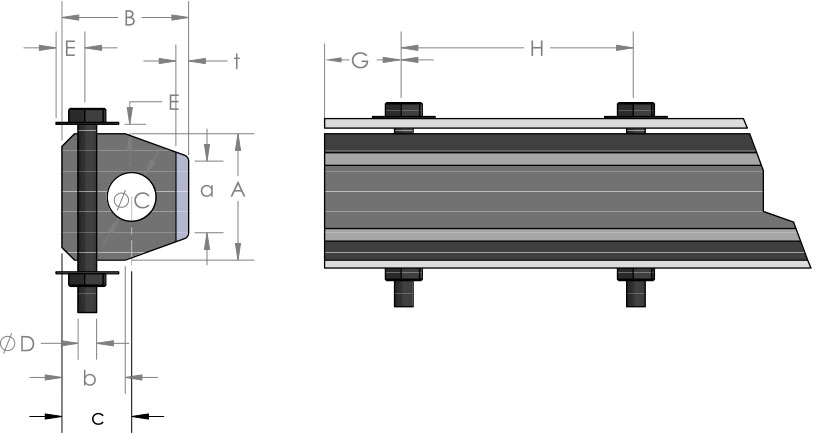

DIMENSIONS
| A | B | C | a | b | c | t | ØD | E | G | H | Flat Bar | Bolt Size | Length |
| 80 | 80 | 42 | 60 | 40 | 44 | 10 | 15 | 25 | 100 | 200 | 45×6 | M12 | 3000 |
| 100 | 100 | 45 | 74 | 50 | 56 | 10 | 15 | 25 | 100 | 200 | 45×6 | M12 | 3000 |
| 120 | 120 | 62 | 88 | 60 | 67 | 12 | 20 | 30 | 100 | 200 | 60×8 | M16 | 3000 |
| 150 | 150 | 73 | 110 | 75 | 83 | 15 | 20 | 30 | 100 | 200 | 60×8 | M16 | 3000 |
The above table covers our standard sizes only.
However we can design and build to suit customer’s individual requirements.
All Dimensions in mm. Overall Dimensional Tolerances 35%
