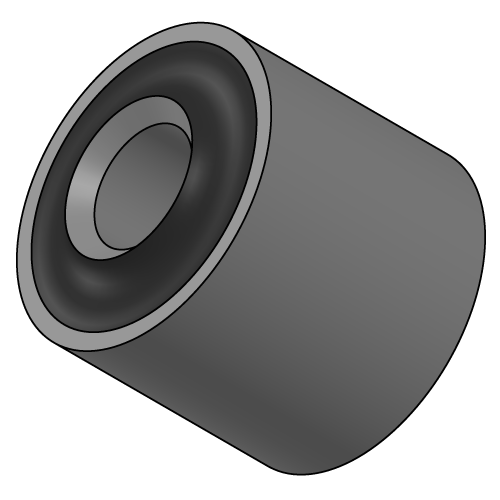

RUBBER METAL BONDED BUSHES
DESCRIPTION
This mount can be used to great advantage as a solution for bedding problems in mobile appliances and machines or between machine parts that can be flexible in relation to each other. As the rubber supports the movement, this flexible connection does not need to be greased or require maintenance. The VP range has a very high noise and vibration insulating properties which makes it ideal for construction machinery.
APPLICATIONS
• Cars
• Train carriages
• Tractors
• Agricultural machines etc.
Material
Natural Rubber (NR)

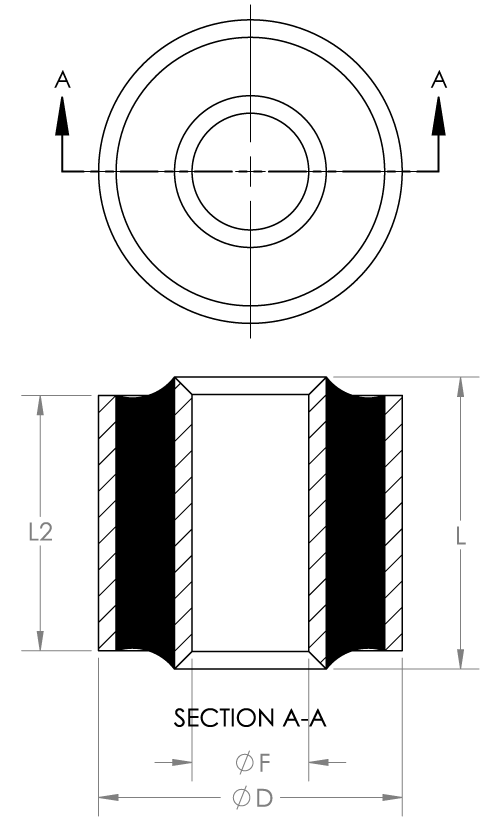

F = Inner Diameter D = Outer Diameter L = Length
DIMENSIONS
| Article No. | L1 (mm) | L2 (mm) | F (mm) | D(mm) | Max. Axial Load (kg) |
Max.Radial Load (kg)
|
| BMBB3208 | 18 | 23 | 8.2 | 32 | 8 | 40.6 |
| BMBB2009 | 19 | 22 | 9.5 | 20.6 | 282 | 953 |
| BMBB2210 | 15 | 17 | 10 | 22 | 11 | 103.5 |
| BMBB2510 | 35 | 41 | 10 | 25 | 145.6 | 741.5 |
| BMBB321015 | 15 | 20 | 10 | 32 | 9 | 35.2 |
| BMBB321024 | 24 | 30 | 10 | 32 | 35 | 385 |
| BMBB2611 | 32 | 36 | 11.1 | 26.03 | 461 | 1923 |
| BMBB2512 | 25 | 28 | 12 | 25 | 46.9 | 382 |
| BMBB2612 | 32 | 36 | 12 | 26 | 0 | 0 |
| BMBB30123434 | 34 | 34 | 12 | 30 | 5.5 | 340 |
| BMBB30123444 | 34 | 44 | 12 | 30 | 115.5 | 340 |
| BMBB301236 | 36 | 40 | 12 | 30 | 44 | 372.6 |
| BMBB3412 | 35 | 41 | 12 | 34 | 60.2 | 273.9 |
| BMBB5012 | 50 | 62 | 12 | 50 | 64.8 | 234.6 |
| BMBB7412 | 45 | 66 | 12.5 | 74.5 | 154 | 428.4 |
| BMBB3013 | 40 | 40 | 13 | 30 | 44 | 316.8 |
| BMBB7414 | 45 | 66 | 14.5 | 74.5 | 147 | 428.4 |
| BMBB3515 | 45 | 50 | 15 | 35 | 0 | 0 |
| BMBB6015 | 20 | 30 | 15 | 60 | 0 | 0 |
| BMBB3216 | 17 | 17 | 16 | 32 | 0 | 0 |
| BMBB3816 | 64 | 72 | 16 | 38 | 203.2 | 1449 |
| BMBB5016 | 60 | 82 | 16 | 50 | 306 | 741 |
| BMBB511638 | 38 | 47.5 | 16 | 51 | 46 | 204 |
| BMBB511644 | 44.3 | 53.8 | 16 | 51 | 56.7 | 256 |
| BMBB3817 | 33 | 38 | 17 | 38 | 72 | 493.9 |
| BMBB3418 | 42 | 42 | 18 | 34 | 0 | 0 |
| BMBB4018 | 50 | 50 | 18 | 40 | 0 | 0 |
| BMBB4818 | 78 | 91 | 18 | 48 | 0 | 0 |
| BMBB571860 | 60 | 72 | 18 | 57 | 81.6 | 381.6 |
| BMBB571870 | 70 | 86 | 18 | 57 | 240.9 | 903.9 |
| BMBB4119 | 25 | 33 | 19 | 41 | 0 | 0 |
| BMBB452059 | 59.5 | 62.5 | 20 | 45 | 0 | 0 |
| BMBB452070 | 70 | 75 | 20 | 45 | 0 | 0 |
| BMBB4920 | 60 | 63 | 20 | 49 | 0 | 0 |
| BMBB5020 | 40 | 46 | 20 | 50 | 0 | 0 |
| BMBB402520 | 20 | 20 | 25 | 40 | 0 | 0 |
| BMBB402530 | 30 | 30 | 25 | 40 | 0 | 0 |
| BMBB502540 | 40 | 45 | 25 | 50 | 0 | 0 |
| BMBB502550 | 50 | 50 | 25 | 50 | 0 | 0 |
| BMBB6025 | 76.5 | 82.5 | 25.6 | 60.3 | 0 | 0 |
| BMBB6628 | 55 | 69 | 28 | 66 | 120.4 | 491.4 |
| BMBB6030 | 45 | 55 | 30 | 60 | 0 | 0 |
| BMBB8238 | 70 | 90 | 38 | 82 | 249.2 | 1512 |
| BMBB8240 | 70 | 90 | 40 | 82 | 360 | 1390.8 |
| BMBB12070 | 40 | 40 | 70 | 120 | 0 | 0 |
