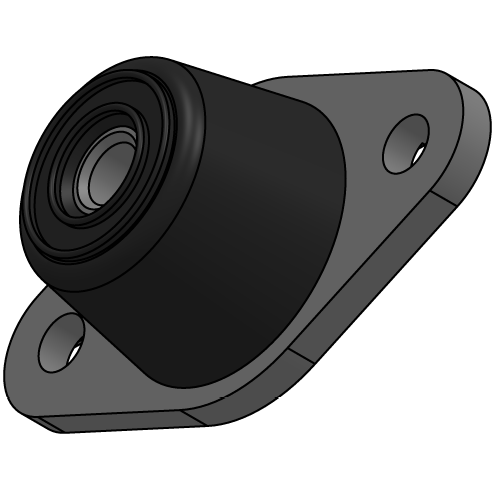

Platform Mount

DESCRIPTION
Platform Mounts are designed with an integral overload stop which controls the movement of equipment during transit and provides a fully failsafe arrangement. They are suitable for both Mobile & Static Applications.
Features
• Static deflection ranges from 5 to 12 mm.
• Colour coded load range.
• Threaded top.
• No -skid ribbed base.
Material
Natural Rubber (NR)

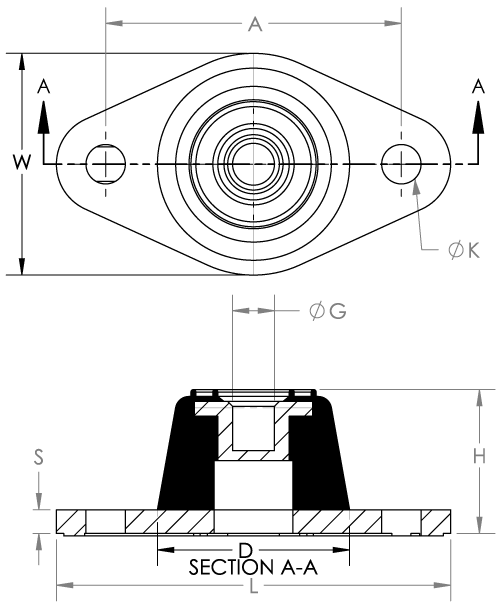

H = Height
L= Length
D = Diameter
G = Tapped, Thread Size
A = Hole Distance
W = Flange Diameter
K = Hole Diameter
S = Metal Thickness
DIMENSIONS
Article No.. | H (mm) | L (mm) | D (mm) | G (mm) | A (mm) | W (mm) | S | K (mm) |
BPM 8028 | 28 | 80 | 32 | M8 | 60 | 45 | 5 | 8.5 |
BPM 9830 | 30 | 98 | 45 | M10 | 76 | 60 | 6 | 8.5 |
BPM 14044 | 44 | 140 | 64 | M12 | 104 | 85 | 6 | 14 |
BPM 16555 | 45 | 165 | 100 | M12 | 127 | 110 | 6 | 14 |
BPM 8035 | 35 | 80 | 32 | M8 | 60 | 45 | 5 | 8.5 |
BPM 9844 | 44 | 98 | 45 | M10 | 76 | 60 | 6 | 8.5 |
BPM 14072 | 72 | 140 | 64 | M12 | 104 | 85 | 6 | 14 |
BPM 16575 | 75 | 165 | 100 | M12 | 127 | 110 | 6 | 14 |
Static Deflection
Article No.. | Max Load (kg) | Static Deflection |
BPM 8028 | 60 | 5 |
BPM 9830 | 175 | 6 |
BPM 14044 | 500 | 6 |
BPM 16555 | 1800 | 6 |
BPM 8035 | 60 | 10 |
BPM 9844 | 175 | 12 |
BPM 14072 | 500 | 12 |
BPM 16575 | 1800 | 12 |
