Machine Mounts

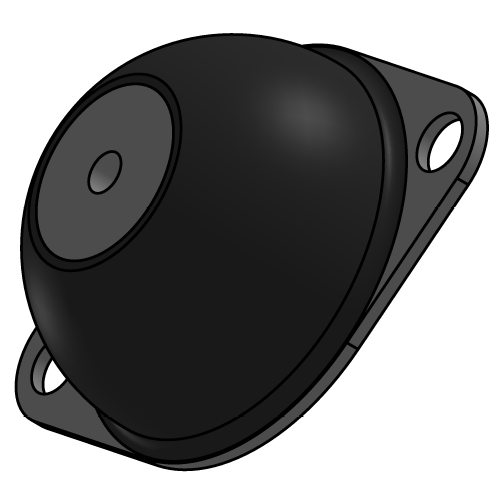

DESCRIPTION

Profile Bobbin Mounts are ideal for applications where high dynamic forces are applied, particularly where applications require high Shear/Compression. The oversized end metals allow for an improved bonded interface between the rubber & metal, to increase the fatigue life when the parts are used for high dynamic applications.

APPLICATIONS

Vibratory rollers.
Sieves and Grading equipment.
Industrial Machinery including diesel engines.

Material

Natural Rubber (NR)

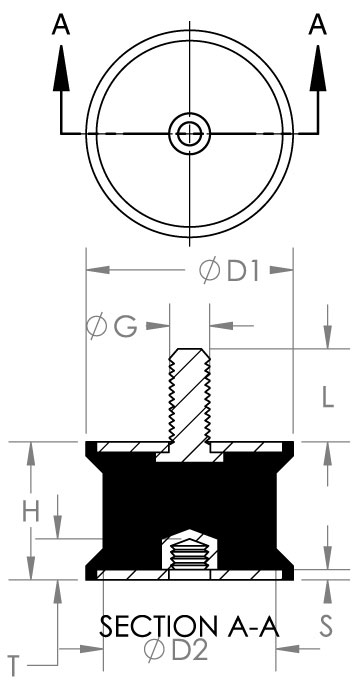

H = Height
L = Thread Length
D1 = Mount Diameter
D2 = Mount Center Diameter
G =Thread Size
T = Thread Depth
S = Metal Thickness

DIMENSIONS

Article No: B (mm) H (mm) L (mm) S (mm)
BRMD2525 25 25 1500 5-10
BRMD2530 25 30 1500 5-10
BRMD3030 30 30 1500 5-10
BRMD4020 40 20 1500 5-10
BRMD4035 40 35 1500 5-10
BRMD4045 40 45 1500 5-10
BRMD5035 50 35 1500 5-10
BRMD5040 50 40 1500 5-10
BRMD5045 50 45 1500 5-10
BRMD5050 50 50 1500 5-10
BRMD5055 50 55 1500 5-10
BRMD6030 60 30 1500 5-10
BRMD6035 60 35 1500 5-15
BRMD6050 60 50 1500 5-10
