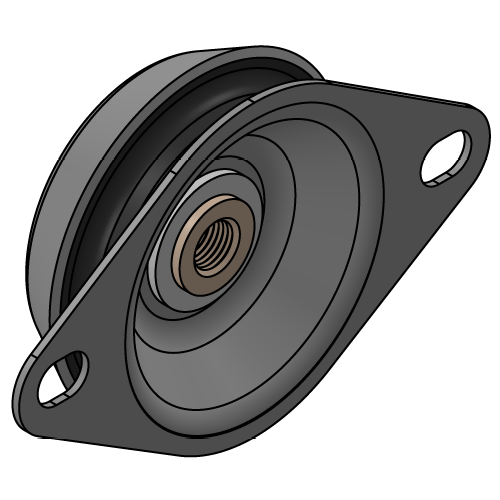

Captive Mounts
DESCRIPTION
Captive Mounts are designed with an integral overload stop which controls the movement of equipment during transit and provides a fully fail safe arrangement. They are suitable for both Mobile & Static Applications.
APPLICATIONS
• Static and mobile generators sets.
• Pumps, compressors, centrifugal fans and blowers.
• Railway equipment compartments.
• Marine engines (no thrust) and gearboxes
• Electronic control panels.
Features
• It is a universal mounting and is popular in a wide range of applications.
• Cost-Effective
• High performing & easy to install.
• The rubber is used in shear/compression providing optimum performance and offers vibration reduction of up to 95%.
• The metal top cap provides protection from contaminants such as Oil & Fuel, of load rating 20Kg to 4000Kg.
Material
Natural Rubber (NR)

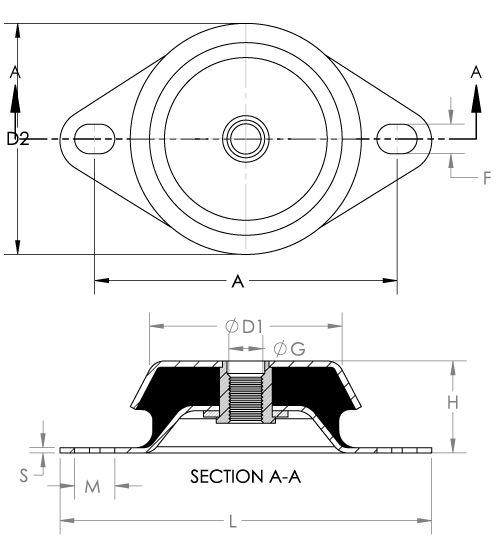

H = Total Height L= Total Length D1 = Top Diameter D2 = Bottom Diameter G = Thread Size A = Hole – Hole Distance F x M = Hole Size S = Metal Thickness
DIMENSIONS
| Article No.. | H (mm) | L (mm) | D1 (mm) | D2 (mm) | G | A (mm) | FxM (mm) | S (mm) |
| BCM 10631 | 31 | 106 | 50 | 60 | M12 | 75 | 8.3 x 16 | 3 |
| BCM 10635 | 35 | 106 | 50 | 60 | M12 | 75 | 8.3 x 16 | 2 |
| BCM 11035 | 35 | 110 | 50 | 65 | M10/M12 | 73 | 8.3 x 16 | 3 |
| BCM 12035.3 | 35.3 | 120 | 47 | 63.5 | M10/M12 | 100 | 11 x 11 | 2 |
| BCM 12830 | 30 | 128 | 59 | 77 | M10 | 110 | 9 x 9 | 2 |
| BCM 12845 | 45 | 138 | 73.5 | 92 | M16 | 110 | 10.5 x 10.5 | 3 |
| BCM 14436 | 36 | 144 | 70 | 93 | M10 | 124 | 10 x 10 | 2.5 |
| BCM 16940S | 40 | 169 | 77 | 105 | M16 | 140 | 14 x 19 | 3 |
| BCM 17238 | 38 | 172 | 81 | 106 | M16 | 138 | 14 x 18 | 3 |
| BCM 19050 | 50 | 190 | 83 | 108 | M16 | 160 | 16.5 x 16.5 | 5 |
| BCM 19241 | 40.5 | 192 | 90 | 115 | M16 | 158 | 14 x 14 | 3 |
| BCM 21648 | 48 | 216 | 118 | 145 | M16 | 182 | 14 x 19 | 4 |
| BCM 21652S | 52 | 216 | 134 | 155 | M16 | 182 | 14 x 19 | 4 |
| BCM 19066 | 66.5 | 190 | 140 | 181 | M20 (Square Base Flange) | 160 | 14 x 14 | 4 |
| BCM 18086S | 86 | 180 | 141 | 184 | M20 (Square Base Flange) | 146 | 14 x 14 | 5 |
| BCM 220105 | 105 | 220 | 160 | 220 | M24 (Square Base Flange) | 180 | 18 x 18 | 6 |
|
Article No.. |
45 ShA | 60 ShA | 70 ShA | |||
| Maximum Load (KG) | Static Deflection (MM) | Maximum Load (KG) | Static Deflection (MM) | Maximum Load (KG) |
Static Deflection (MM)
|
|
| BCM 10631 | 94 | 3 | 170 | 3 | – | – |
| BCM 10635 | 63 | 3 | 114 | 3 | – | – |
| BCM 11035 | 70 | 3.5 | 124 | 3.5 | 196 | 3.5 |
| BCM 12830 | 120 | 3.1 | 220 | 3 | – | – |
| BCM 12845 | 350 | 4 | 600 | 4 | 750 | 3 |
| BCM 12035.3 | 60 | 4 | 118 | 4 | – | – |
| BCM 14436 | 180 | 3.5 | 330 | 3 | – | – |
| BCM 17238 | 240 | 3.5 | 450 | 3.5 | – | – |
| BCM 16940S | 200 | 6 | 400 | 6 | 600 | 6 |
| BCM 19241 | 425 | 4 | 690 | 4 | – | – |
| BCM 12845 | 350 | 4 | 600 | 4 | 750 | 3 |
| BCM 21648 | 750 | 5.5 | 1100 | 5 | – | – |
| BCM 19050 | 400 | 3 | 750 | 3 | 1400 | 3 |
| BCM 21652S | 480 | 10 | 800 | 10 | 1700 | 10 |
| BCM 19066* | 1500 | 9 | 2300 | 8 | 3200 | 6.4 |
| BCM 18086S* | 850 | 15 | 1500 | 15 | – | – |
| BCM 220105* | 1600 | 16 | 3400 | 12 | 5012 | 5.5 |
